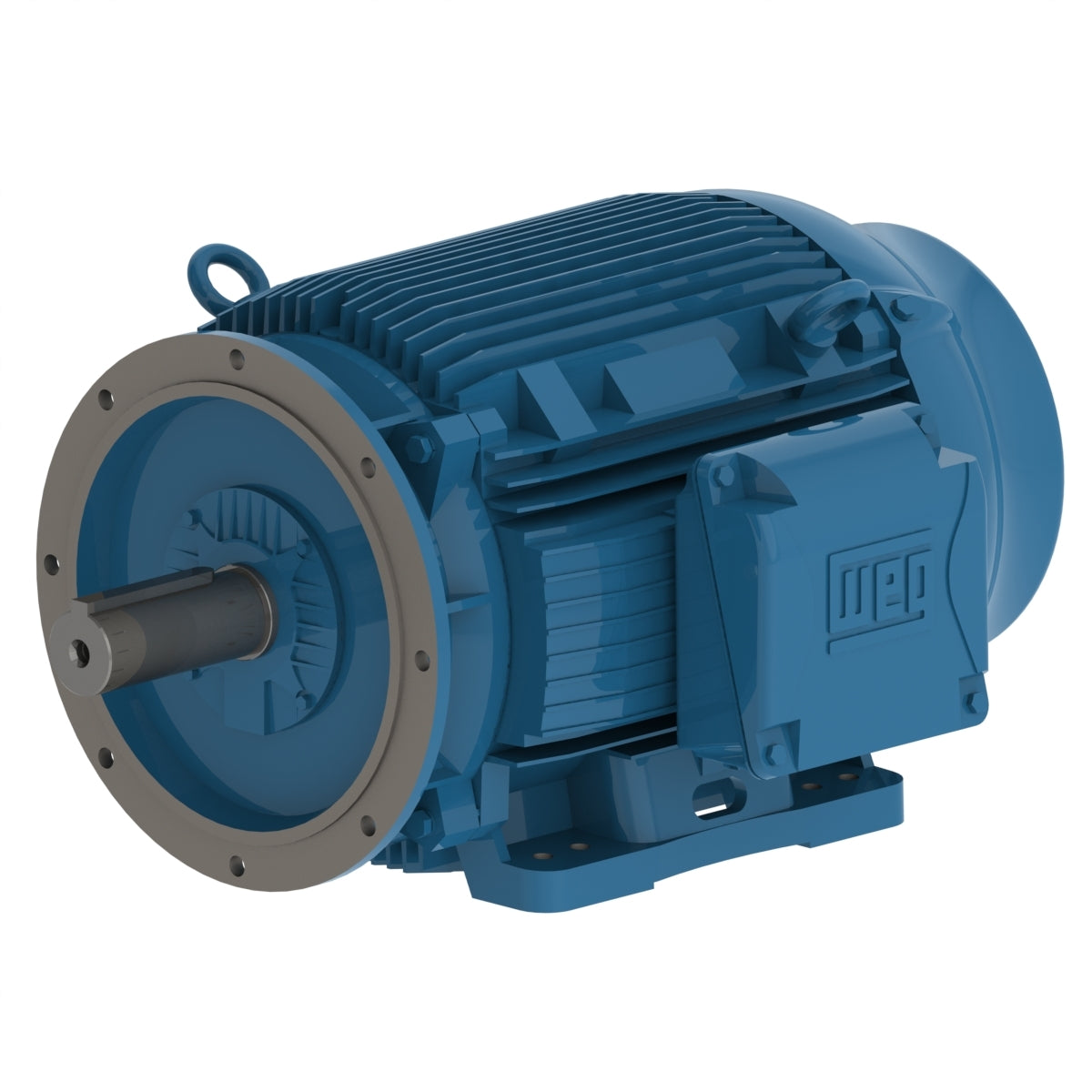

Weg Electric 01836ET3Y160LFF-W22, 25 HP, 3600 Rpm, 160L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

01836ET3Y160LFF-W22, 25 HP, 3600 Rpm, 160L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange FF
Mounting B35L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 160L
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 29.9 A
L. R. Amperes 266 A
LRC 8.9
No load current 11.5 A
Rated torque 37.0 ft.lb
Locked rotor torque 330 %
Breakdown torque 440 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.32 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
