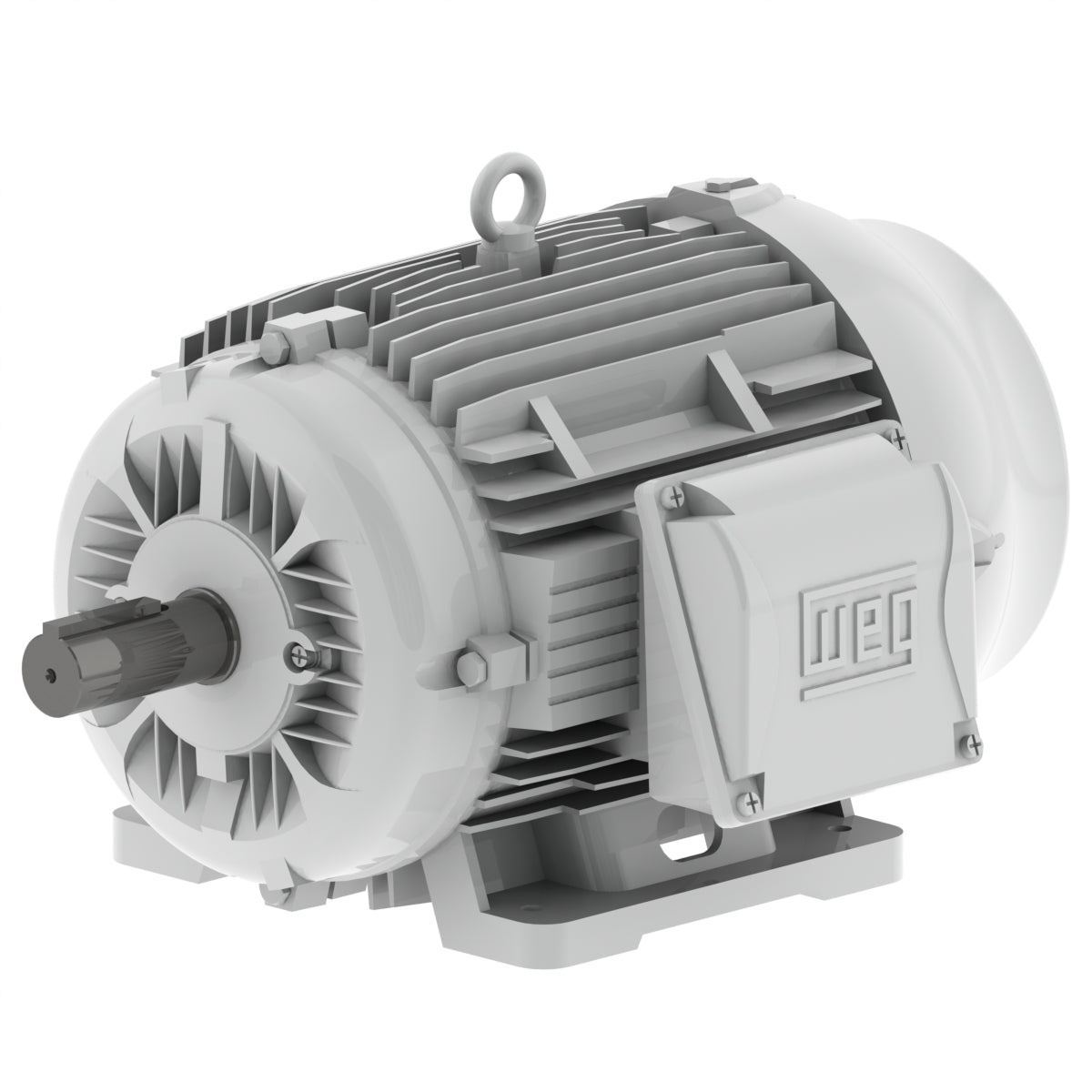

Weg Electric 02009ES3EOW326T-W22, 20 HP, 900 Rpm, 324/6T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Standard Efficiency.

02009ES3EOW326T-W22, 20 HP, 900 Rpm, 324/6T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Standard Efficiency.

Engineering Data

These special motors have the high slip and high torque that oil well beam pumping units demand. W22 Design D motors are requested on specifications for most major oil companies around the world as a result of their long lasting performance, low purchase and maintenance cost.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 324/6T
Output 20 HP (15 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 840 rpm
Slip 6.67 %
Rated voltage 208-230/460 V
Rated current 65.9-59.6/29.8 A
L. R. Amperes 323-292/146 A
LRC 4.9x(Code G)
No load current 35.4-32.0/16.0 A
Rated torque 125 ft.lb
Locked rotor torque 280 %
Breakdown torque 0 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.7 sq.ft.lb
Design D
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
