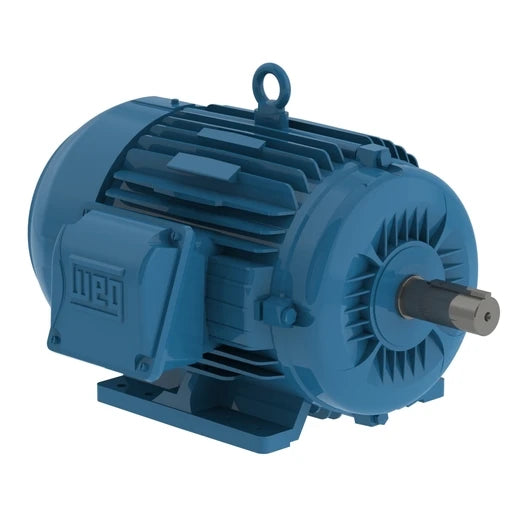

Weg Electric 02009ST3HIE324T-W22, 20 Hp, 900 Rpm, 324/6T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 12967947

Weg Electric 02009ST3HIE324T-W22, 20 Hp, 900 Rpm, 324/6T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 12967947

$7,359.41
$7,359.41
Sale Sold out
Shipping calculated at checkout.

Weg Electric 02009ST3HIE324T-W22, 20 Hp, 900 Rpm, 324/6T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 12967947

SPECIFICATIONS

Manufacturer Part Number 02009ST3HIE324T-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 20HP 8P 324/6T WFF2
Type Severe Duty
Horsepower 20 hp
Kilowatts 14.9 kW
Speed 900 RPM
Number of Poles 8
Phase 3
Frequency 60 Hz
NEMA Frame 324/6T
AC Voltage 575 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 23.9 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Bearing Type Ball
Shaft Diameter 2.13 "
Overload Protection None
Length 31.06 "
Approvals cCSAus, cULus
Net Weight 549.465 lbs
Gross Weight 549.465 lbs
