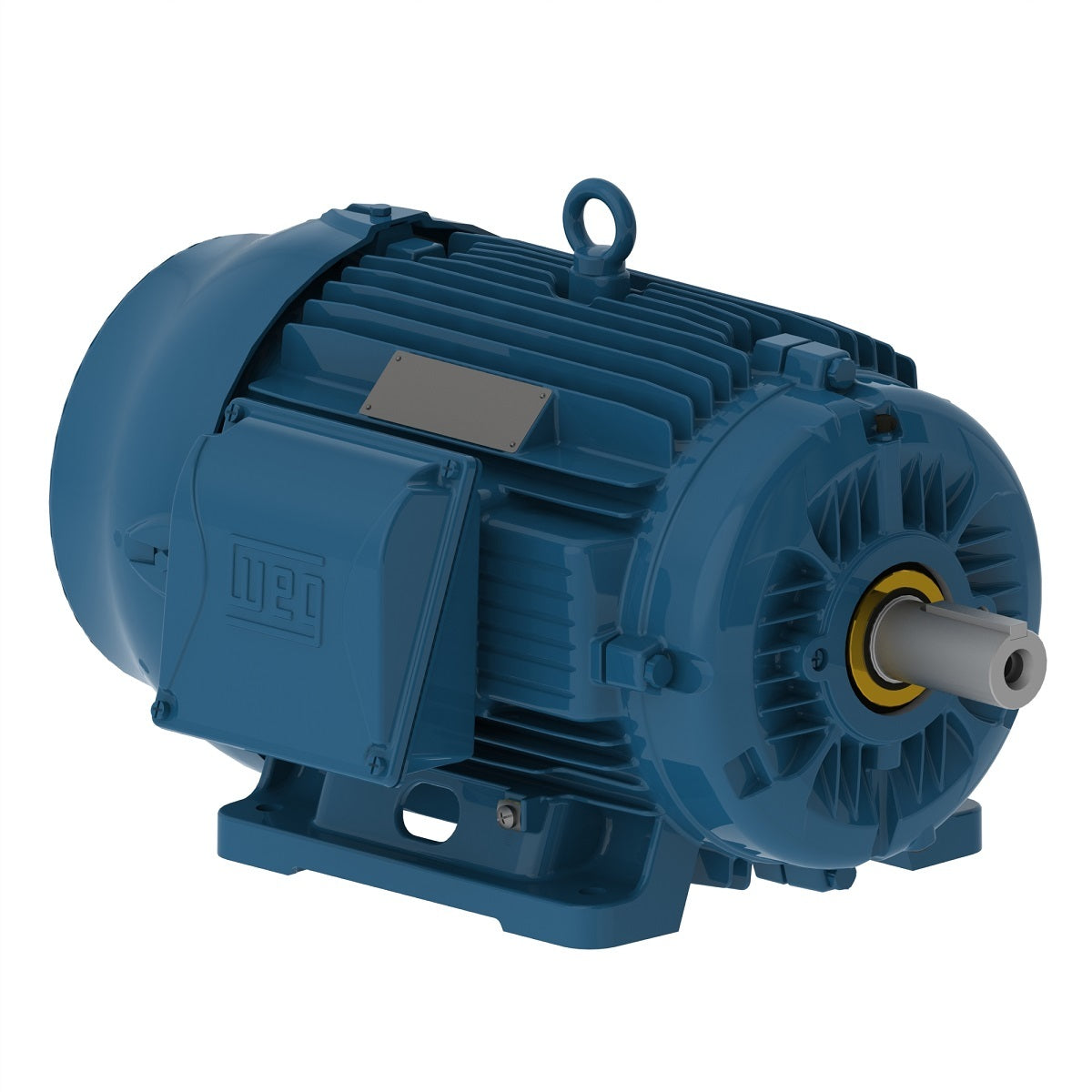

Weg Electric 02009ST3QIE324TC-W22, 20 Hp, 900 Rpm, 324/6TC Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency.

02009ST3QIE324TC-W22, 20 Hp, 900 Rpm, 324/6TC Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency.

Engineering Data

The W22 IEEE841 motors are designed for the petrochemical and chemical industries. They have rugged construction and long service life, for the most demanding industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 324/6TC
Output 20 HP (15 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 460 V
Rated current 28.3 A
L. R. Amperes 142 A
LRC 5.0x(Code G)
No load current 16.0 A
Rated torque 119 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 48s (cold) 27s (hot)
Moment of inertia (J) 9.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
