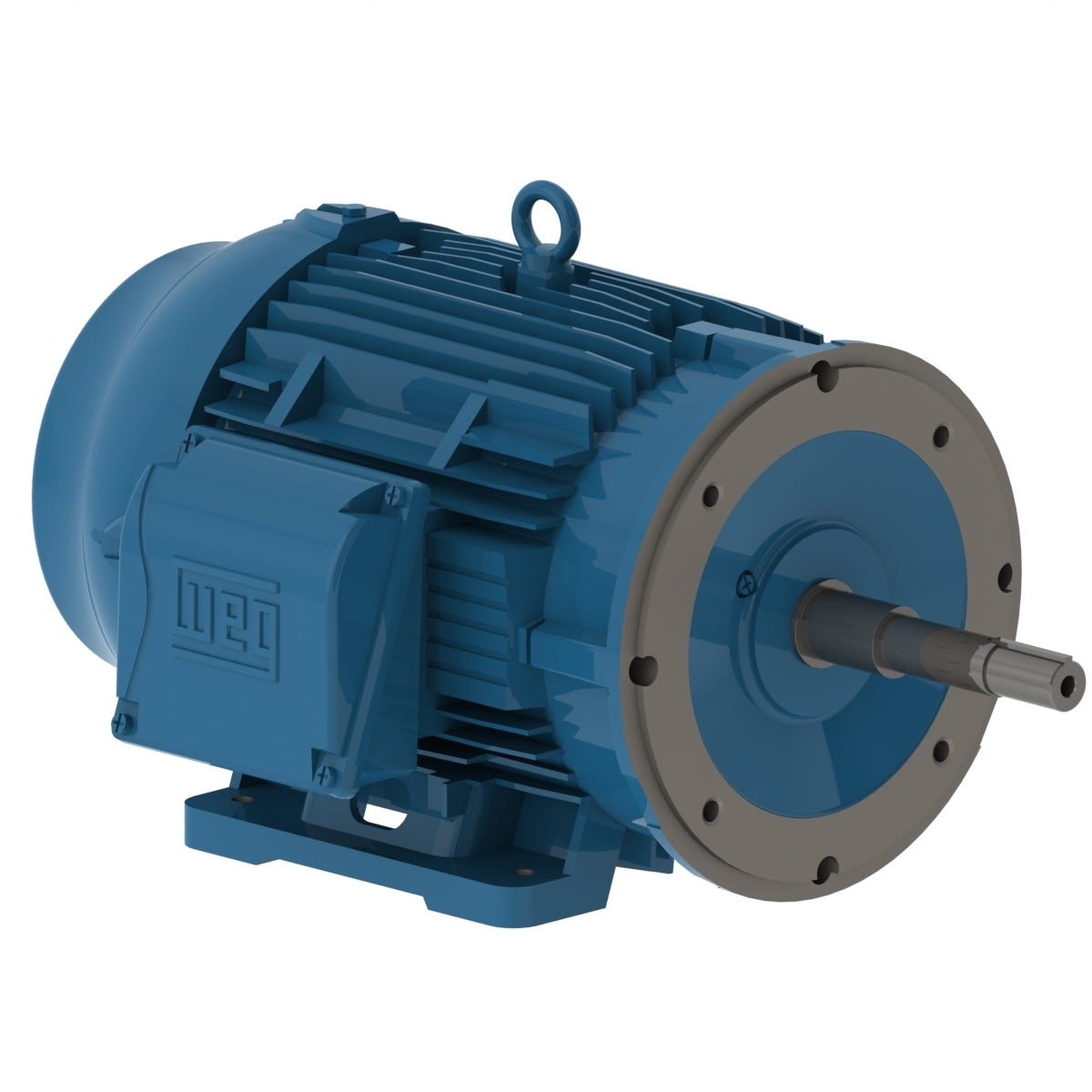

Weg Electric 02012ET3E286JP-W22, 20 Hp, 1200 Rpm, 284/6JP Frame, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JP NEMA Premium Efficiency.

02012ET3E286JP-W22, 20 Hp, 1200 Rpm, 284/6JP Frame, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JP NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 284/6JP
Output 20 HP (15 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 53.5-48.4/24.2 A
L. R. Amperes 332-300/150 A
LRC 6.2x(Code G)
No load current 16.4-19.0/9.50 A
Rated torque 89.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
