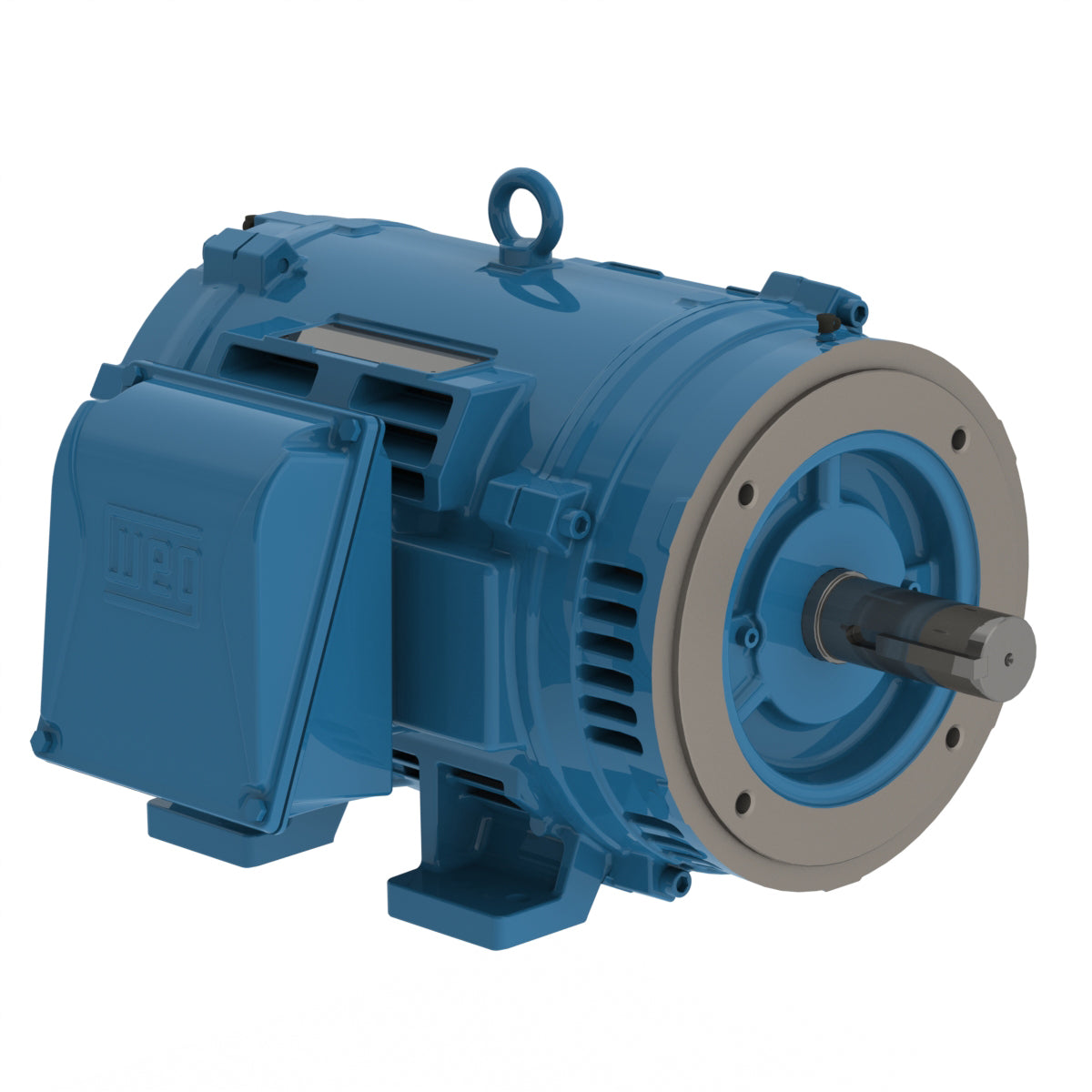

Weg Electric 02012OT3E286TC-W40, 20 Hp, 1200 Rpm, 284/6TC Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

02012OT3E286TC-W40, 20 Hp, 1200 Rpm, 284/6TC Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

Engineering Data

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP23
Synchronous speed 1200 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position

Frame 284/6TC
Output 20 HP (15 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1177 rpm
Slip 1.92 %
Rated voltage 230/460 V
Rated current 48.6/24.3 A
L. R. Amperes 311/156 A
LRC 6.4x(Code G)
No load current 18.8/9.40 A
Rated torque 89.2 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 6.89 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
