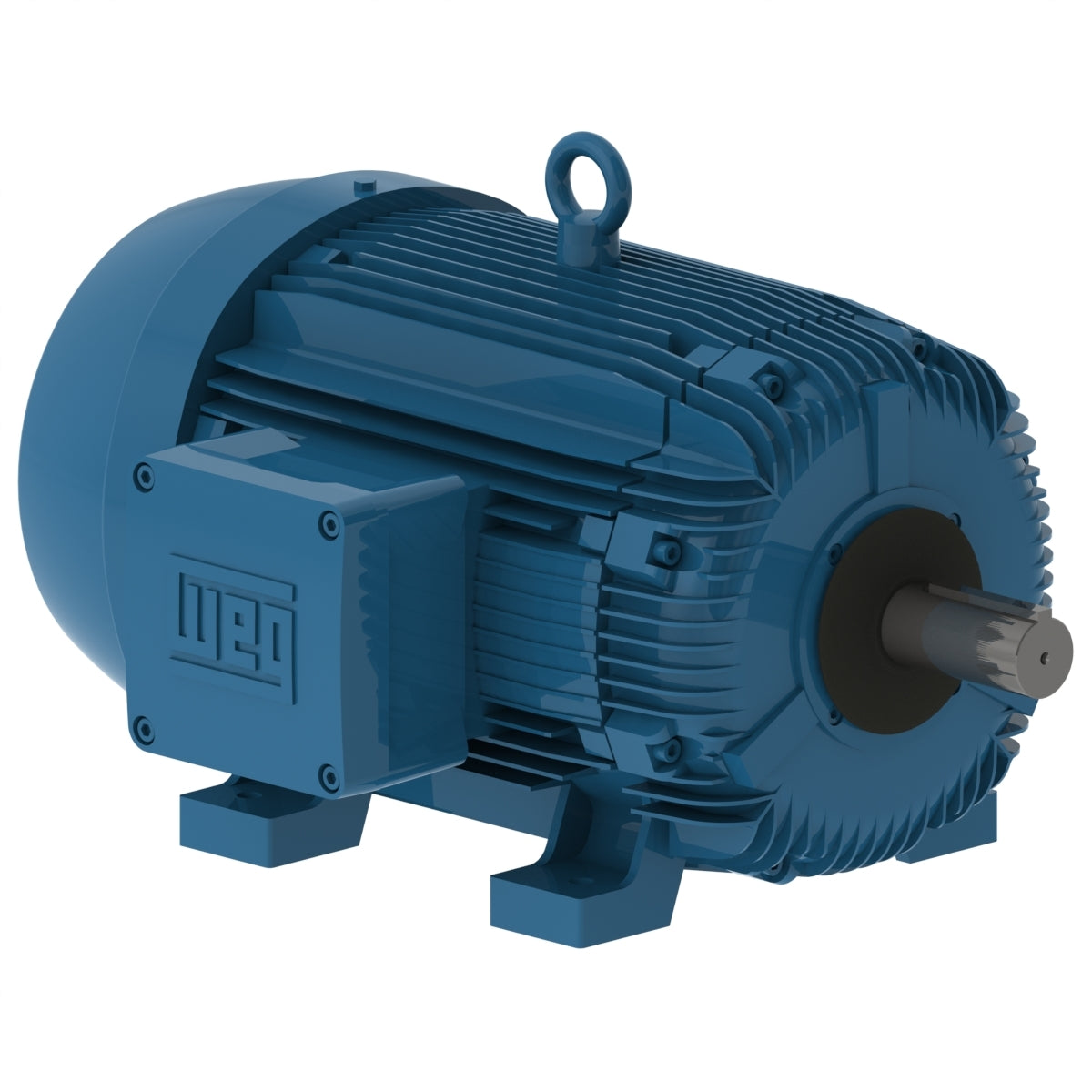

Weg Electric 02012XT3H286T, 20 Hp, 1200 Rpm, 286T Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W21 Explosion-proof Motor NEMA Premium Efficiency.

02012XT3H286T, 20 Hp, 1200 Rpm, 286T Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W21 Explosion-proof Motor NEMA Premium Efficiency.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 286T
Output 20 HP (15 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 575 V
Rated current 19.4 A
L. R. Amperes 139 A
LRC 7.2x(Code H)
No load current 7.20 A
Rated torque 89.4 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 8.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
