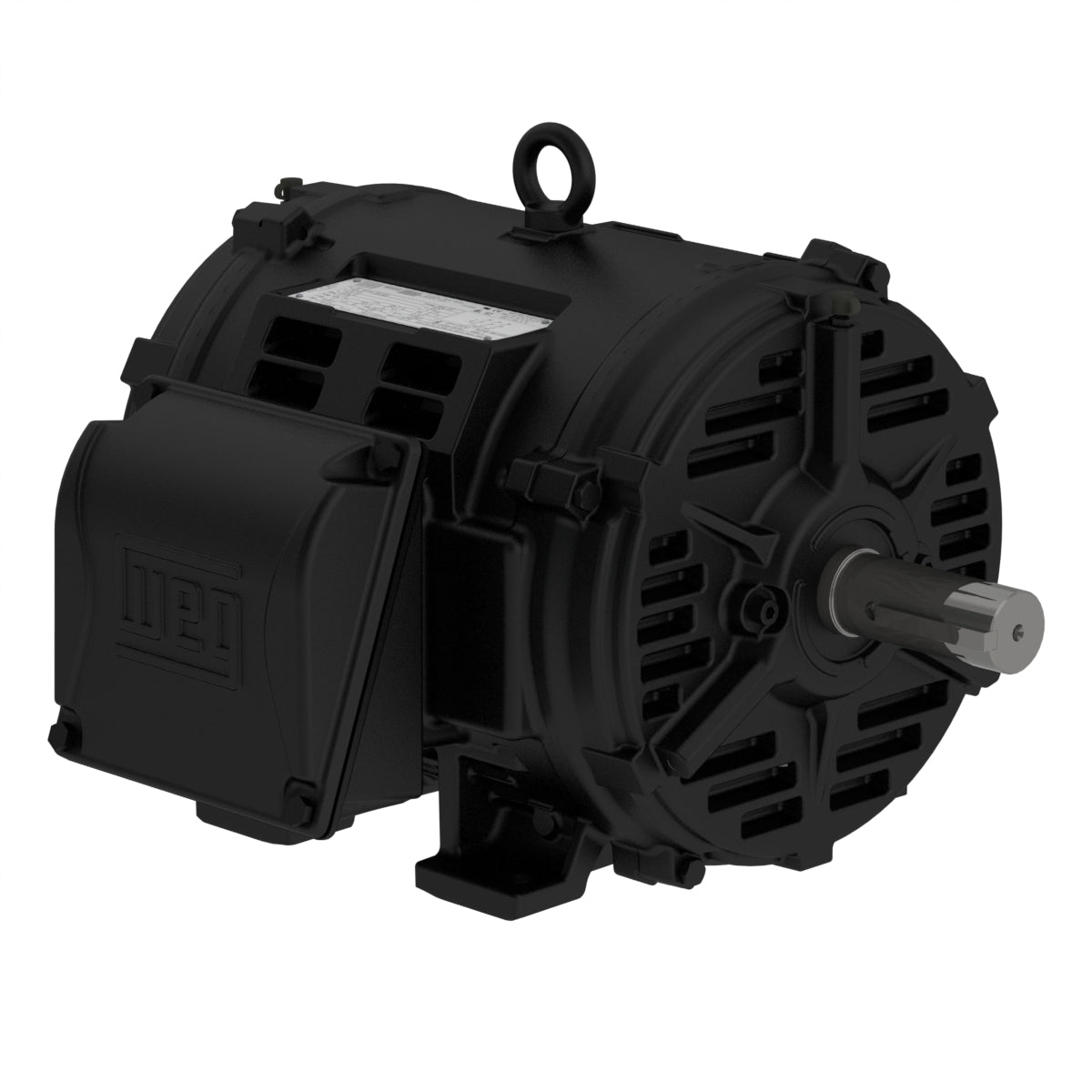

Weg Electric 02015EP3OFP256T-W22, 20 Hp, 1500 Rpm, 254/6T Frame, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

02015EP3OFP256T-W22, 20 Hp, 1500 Rpm, 254/6T Frame, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 50 Hz
Voltage 380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1500 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 28.8 A
L. R. Amperes 153 A
LRC 5.3x(Code F)
No load current 8.50 A
Rated torque 72.9 ft.lb
Locked rotor torque 190 %
Breakdown torque 200 %
Locked rotor time 36s (cold) 20s (hot)
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
