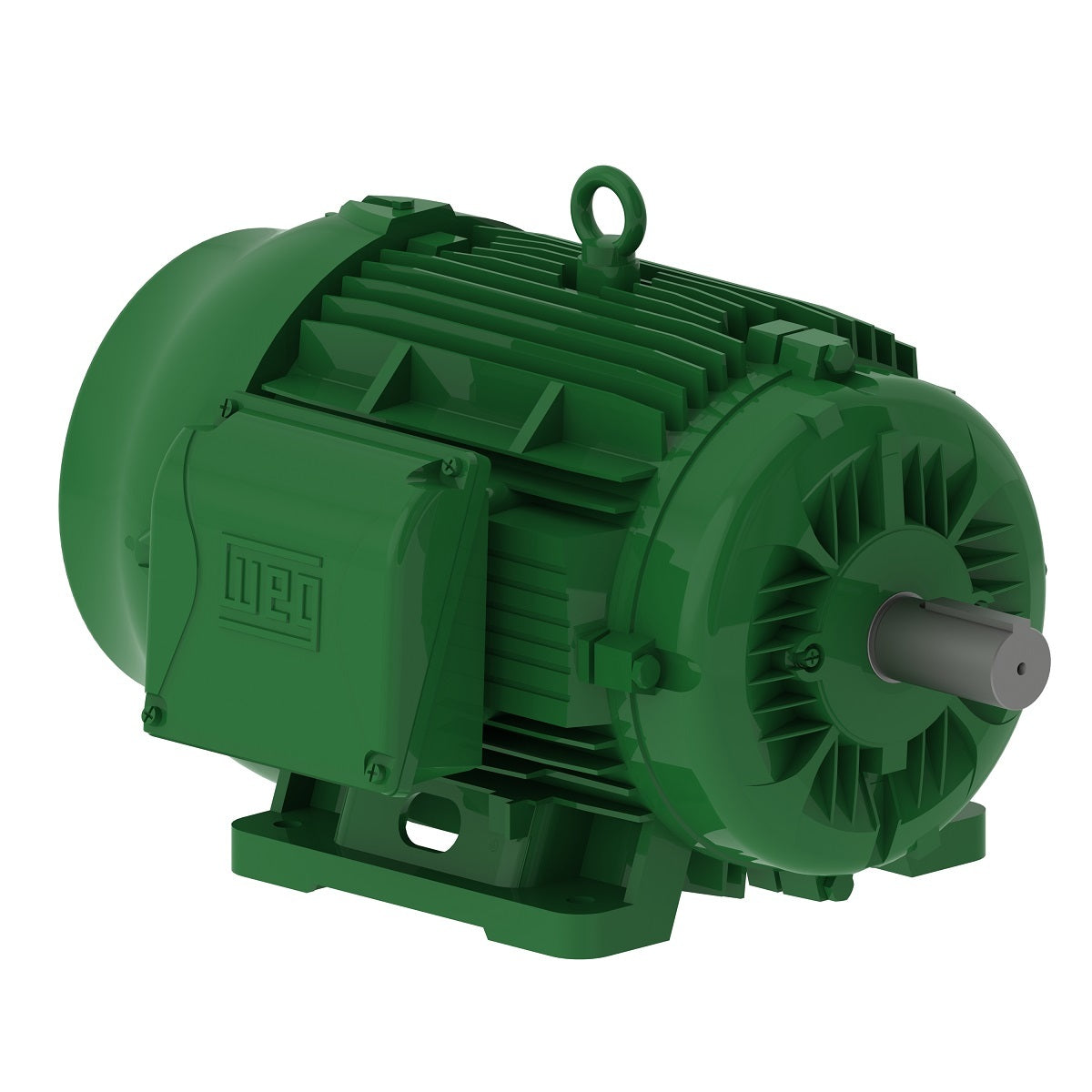

Weg Electric 02018EG3E256T-W22, 20 Hp, 1800 Rpm, 254/6T Frame, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Super Premium Efficiency.

02018EG3E256T-W22, 20 Hp, 1800 Rpm, 254/6T Frame, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Super Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Carry CSA Certified for Division 2 on the Nameplate as standard.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1778 rpm
Slip 1.22 %
Rated voltage 230/460 V
Rated current 49.4/24.7 A
L. R. Amperes 366/183 A
LRC 7.4x(Code J)
No load current 23.0/11.5 A
Rated torque 59.1 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 52s (cold) 29s (hot)
Moment of inertia (J) 4.29 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
