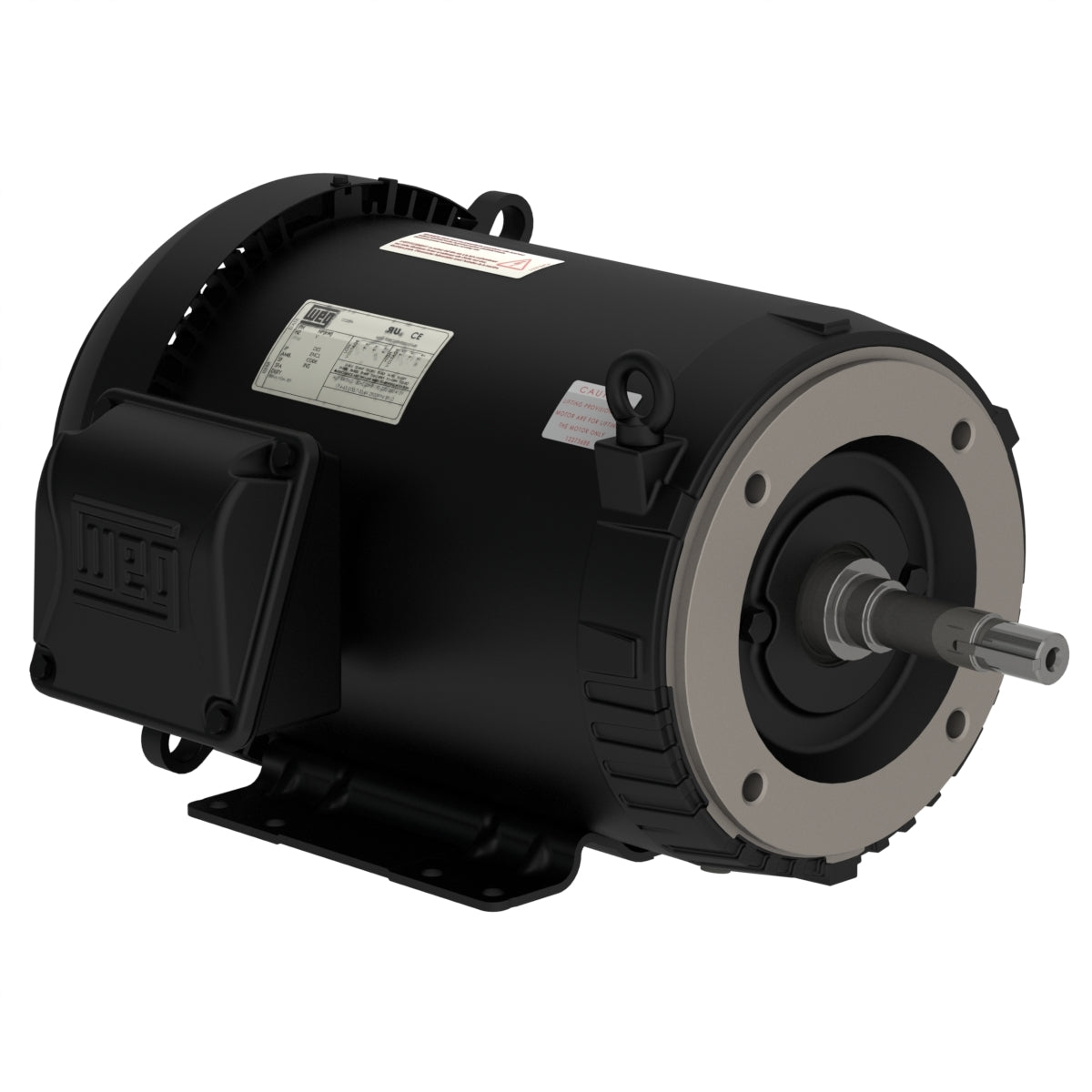

Weg Electric 02018ET3H256JM-S, 20 Hp, 1800 Rpm, 254/6JM Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

02018ET3H256JM-S, 20 Hp, 1800 Rpm, 254/6JM Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6JM
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 575 V
Rated current 19.8 A
L. R. Amperes 132 A
LRC 6.7x(Code H)
No load current 8.89 A
Rated torque 59.5 ft.lb
Locked rotor torque 270 %
Breakdown torque 300 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 2.64 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
