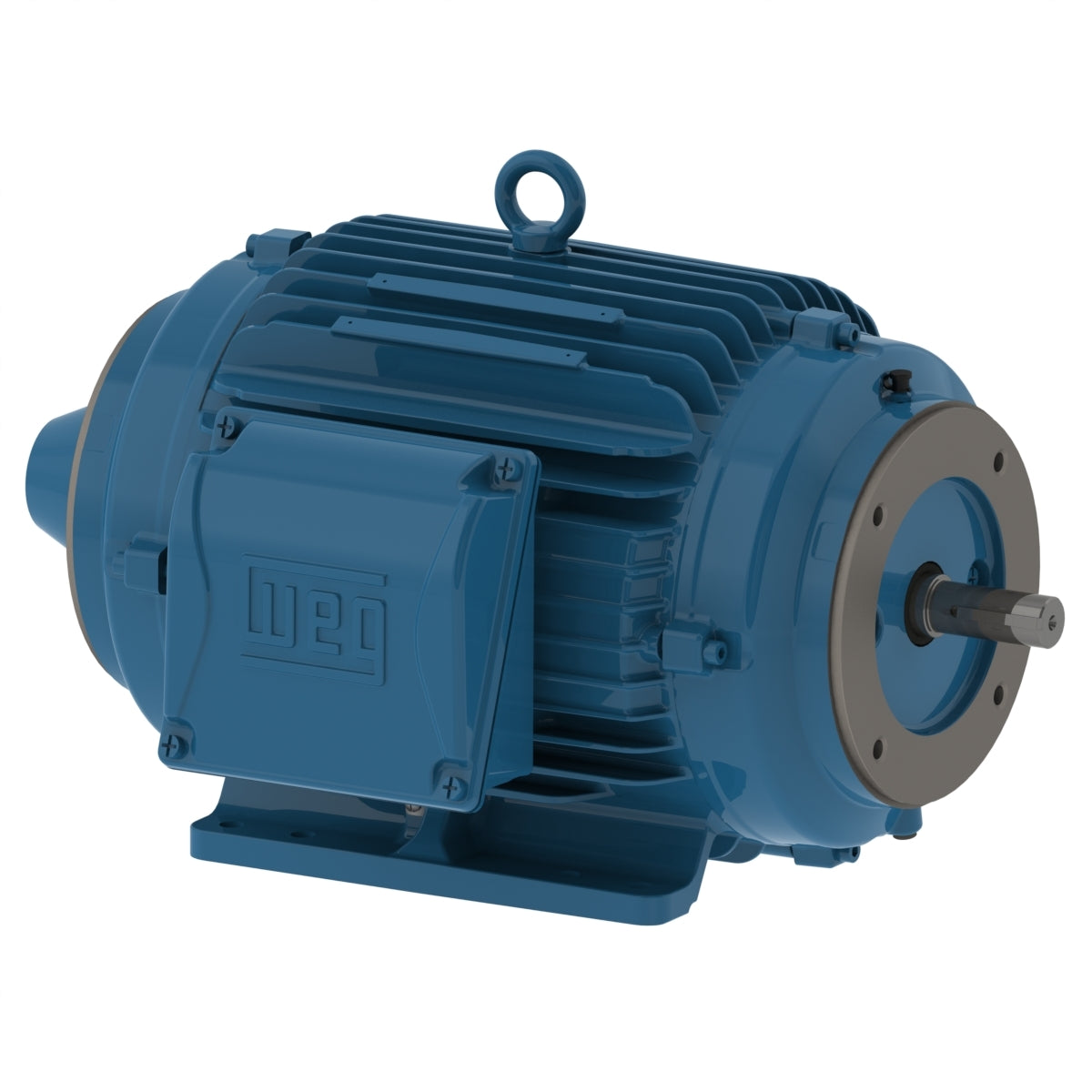

Weg Electric 02018NT3FVD256TC-W22, 20 Hp, 1800 Rpm, 254/6TC Frame, 230/460 Vac, TENV, 3 PH, Foot-mounted, NEMA Premium Efficiency.

02018NT3FVD256TC-W22, 20 Hp, 1800 Rpm, 254/6TC Frame, 230/460 Vac, TENV, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

Motor designed specifically for Inverter Operation, allowing its use in applications where 1000:1 constant torque turndown ratio is required.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TENV

Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 230/460 V
Rated current 53.3/26.6 A
L. R. Amperes 458/229 A
LRC 8.6x(Code L)
No load current 29.5/14.8 A
Rated torque 59.2 ft.lb
Locked rotor torque 360 %
Breakdown torque 430 %
Locked rotor time 27s (cold) 15s (hot)
Design A
Insulation Class H
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method VFD
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TENV
Mounting F-1
Rotation¹ Both (CW and CCW)
