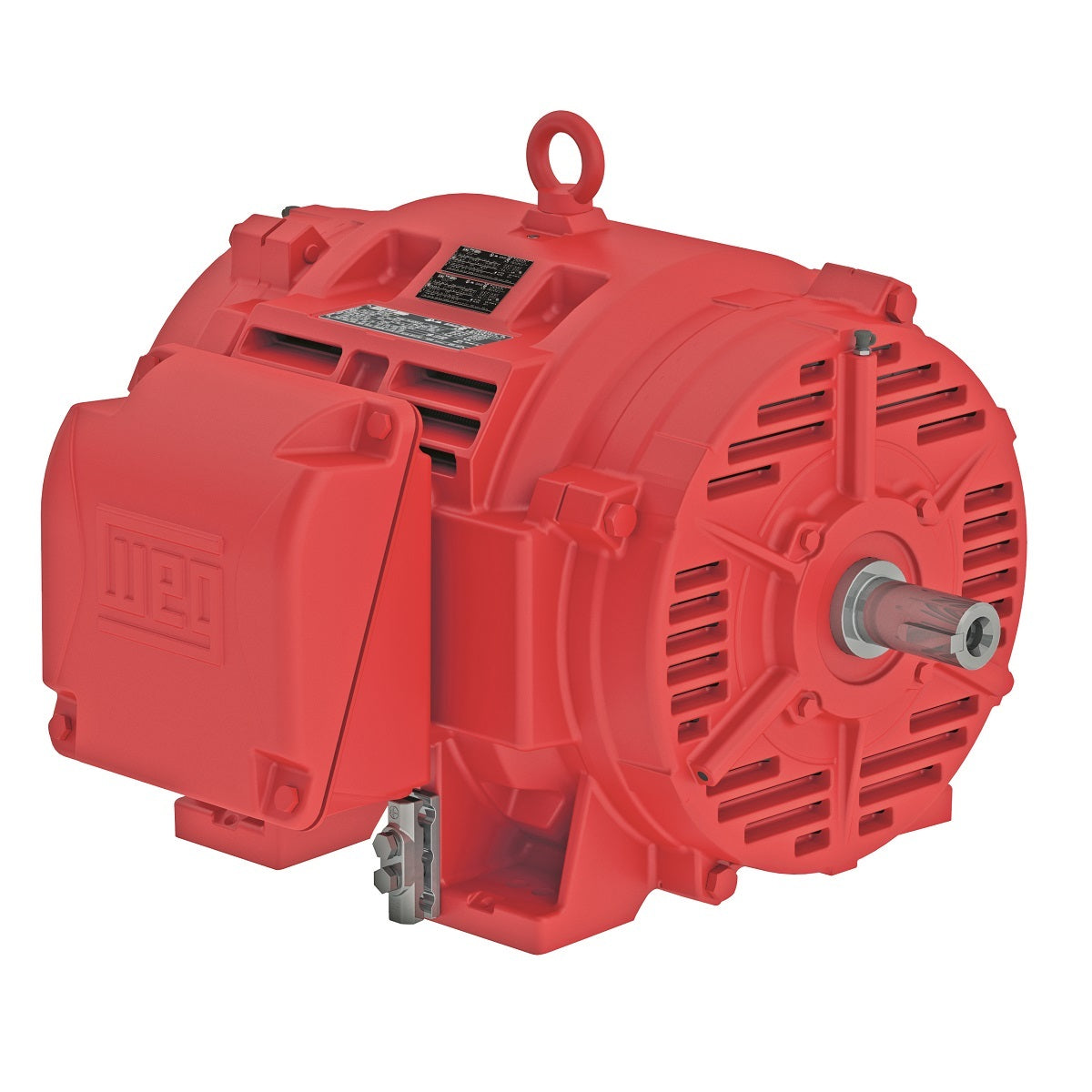

Weg Electric 02018OP3EFP256T-W40, 20 Hp, 1800 Rpm, 254/6T Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W22 High Efficiency.

02018OP3EFP256T-W40, 20 Hp, 1800 Rpm, 254/6T Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W22 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 49.2/24.6 A
L. R. Amperes 285/143 A
LRC 5.8x(Code G)
No load current 20.4/10.2 A
Rated torque 59.7 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 2.63 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
