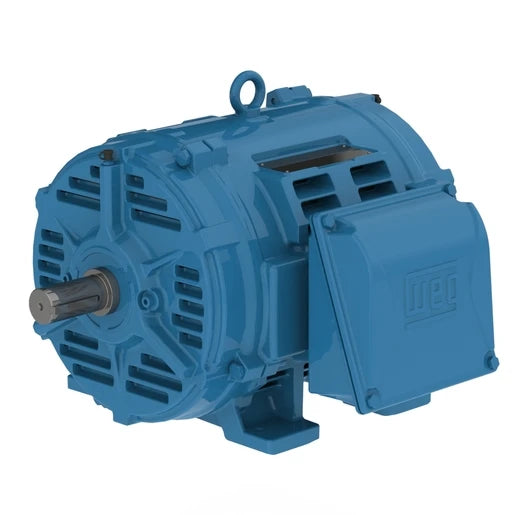

Weg Electric 02018OT3E256TF2-W40, 20 Hp, 1800 Rpm, 254/6T Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14492596

Weg Electric 02018OT3E256TF2-W40, 20 Hp, 1800 Rpm, 254/6T Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14492596

$1,630.48
$1,630.48
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 02018OT3E256TF2-W40, 20 Hp, 1800 Rpm, 254/6T Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14492596

SPECIFICATIONS

Frame 254/6T
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 48.2/24.1 A
L. R. Amperes 308/154 A
LRC 6.4x(Code G)
No load current 20.0/10.0 A
Rated torque 59.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 3.13 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 277 lb
