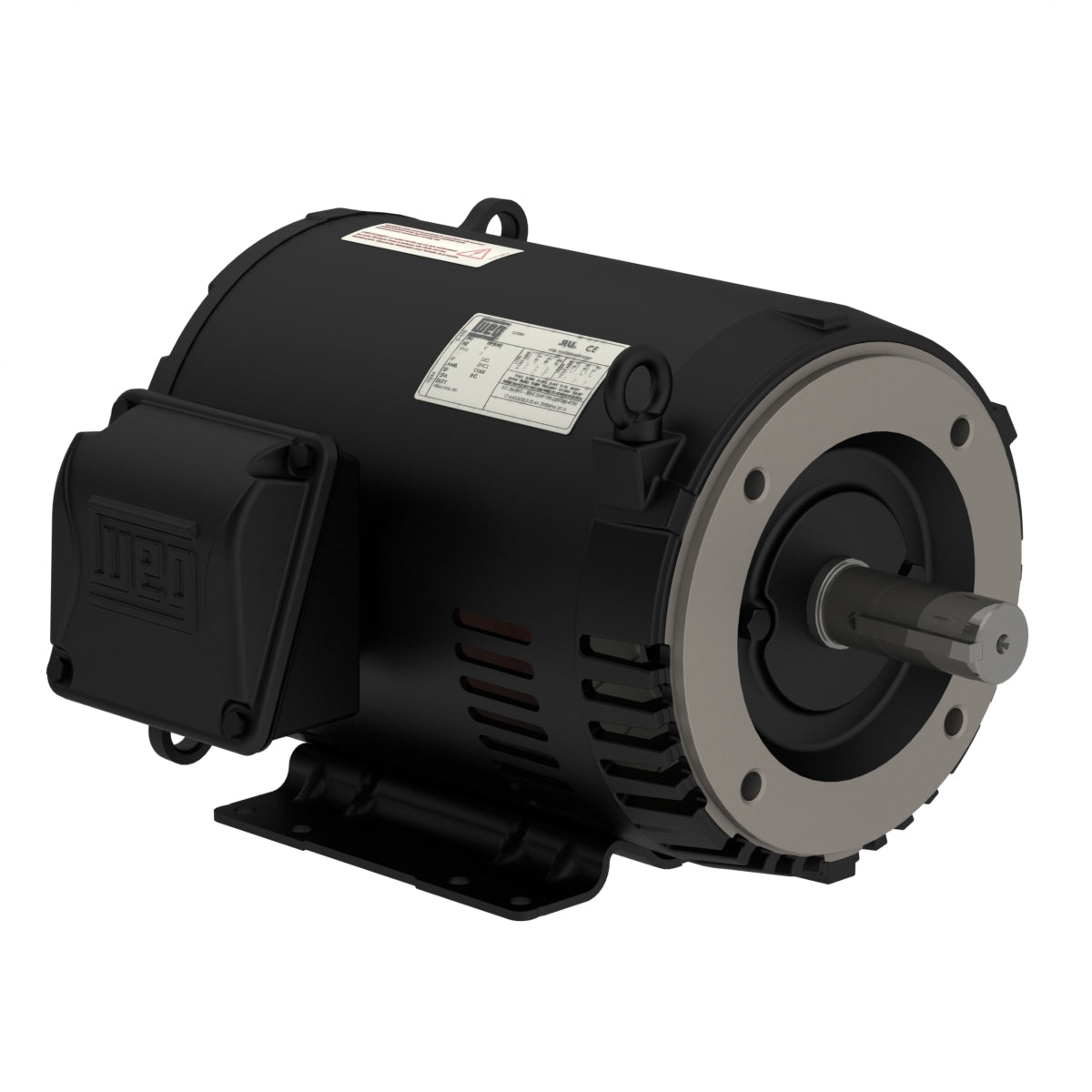

Weg Electric 02018OT3V256JM-S, 20 Hp, 1800 Rpm, 254/6JM Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

02018OT3V256JM-S, 20 Hp, 1800 Rpm, 254/6JM Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6JM
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 200/400 V
Rated current 57.5/28.8 A
L. R. Amperes 362/181 A
LRC 6.3x(Code G)
No load current 26.3/13.1 A
Rated torque 59.3 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 2.23 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
