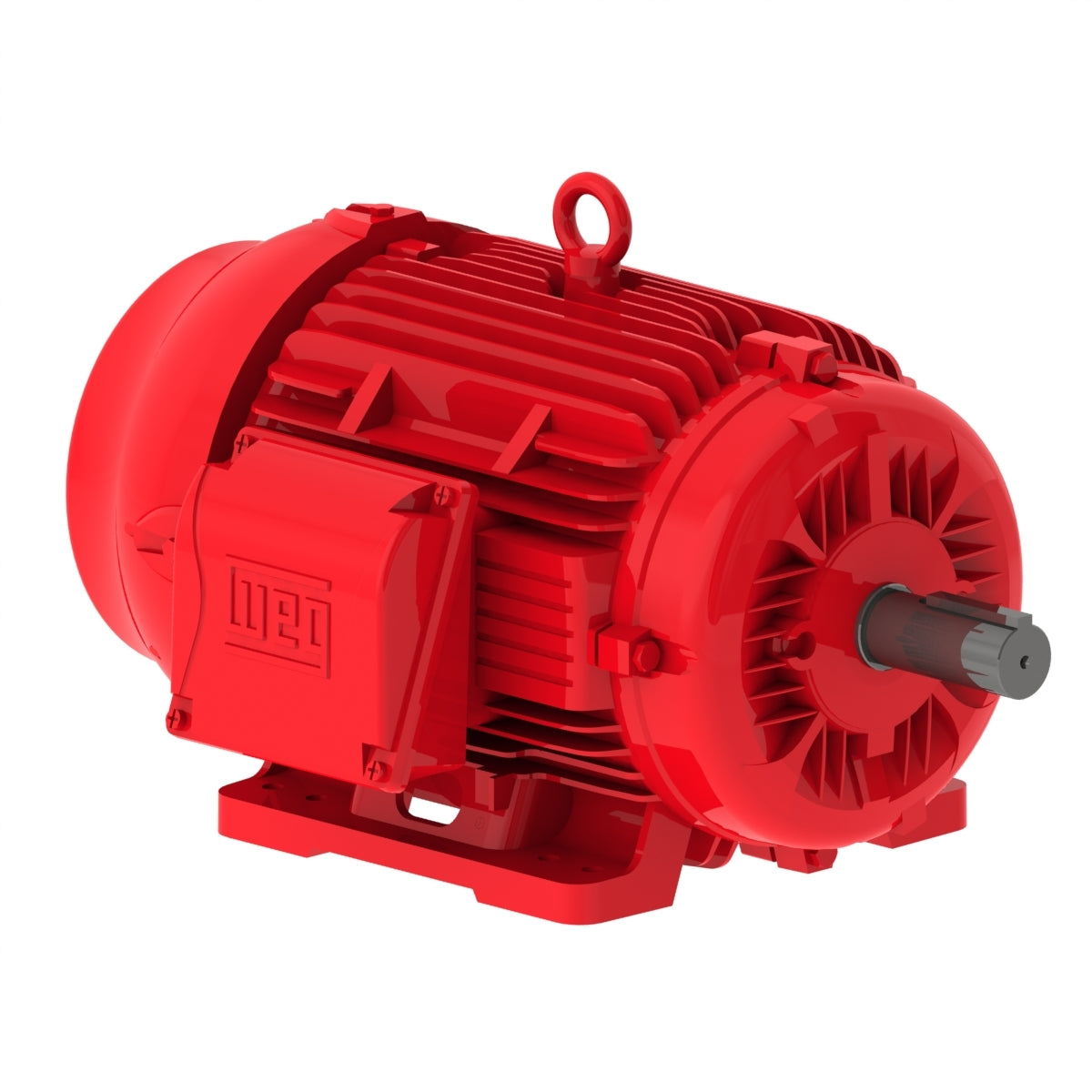

Weg Electric 02030EP3OFP256T-W22, 20 Hp, 3000 Rpm, 254/6T Frame, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

02030EP3OFP256T-W22, 20 Hp, 3000 Rpm, 254/6T Frame, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 50 Hz
Voltage 380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3000 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6T
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 27.5 A
L. R. Amperes 160 A
LRC 5.8x(Code F)
No load current 6.30 A
Rated torque 36.1 ft.lb
Locked rotor torque 195 %
Breakdown torque 220 %
Locked rotor time 18s (cold) 10s (hot)
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
