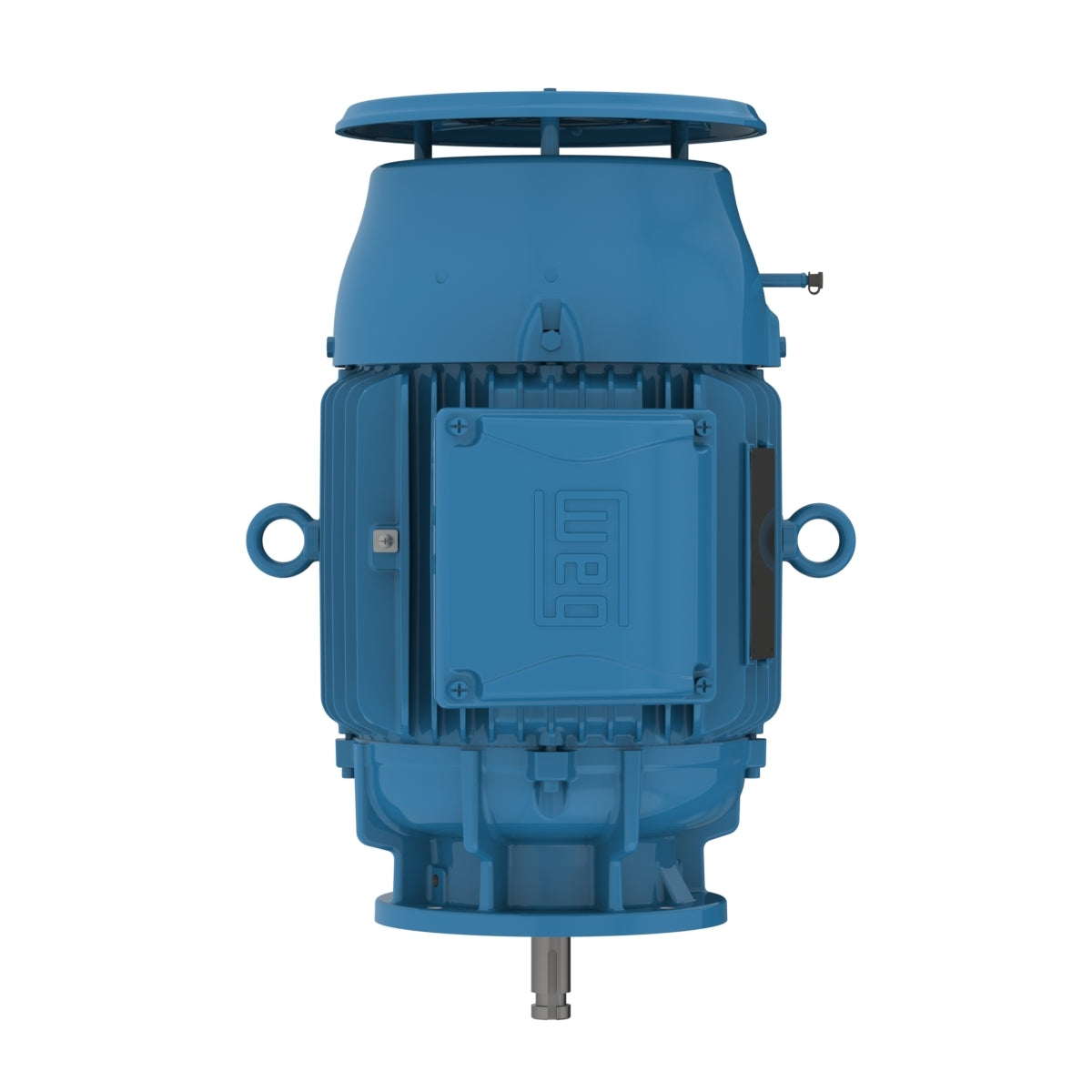

Weg Electric 02036ET3E254HP-W22, 20 Hp, 3600 Rpm, 254HP Frame, 208-230/460 Vac, TEFC, 3 PH, Footless, W22 Super Premium Efficiency.

02036ET3E254HP-W22, 20 Hp, 3600 Rpm, 254HP Frame, 208-230/460 Vac, TEFC, 3 PH, Footless, W22 Super Premium Efficiency.

Engineering Data

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Footless
Flange P
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254HP
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 51.4-46.5/23.2 A
L. R. Amperes 314-284/142 A
LRC 6.1x(Code G)
No load current 0.000-13.0/6.50 A
Rated torque 29.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 37s (cold) 21s (hot)
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
