Weg Electric 02036ET3E256JP-SG, 20 Hp, 3600 Rpm, 254/6JP Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JP Pump NEMA Premium Efficiency.

02036ET3E256JP-SG, 20 Hp, 3600 Rpm, 254/6JP Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JP Pump NEMA Premium Efficiency.

Engineering Data

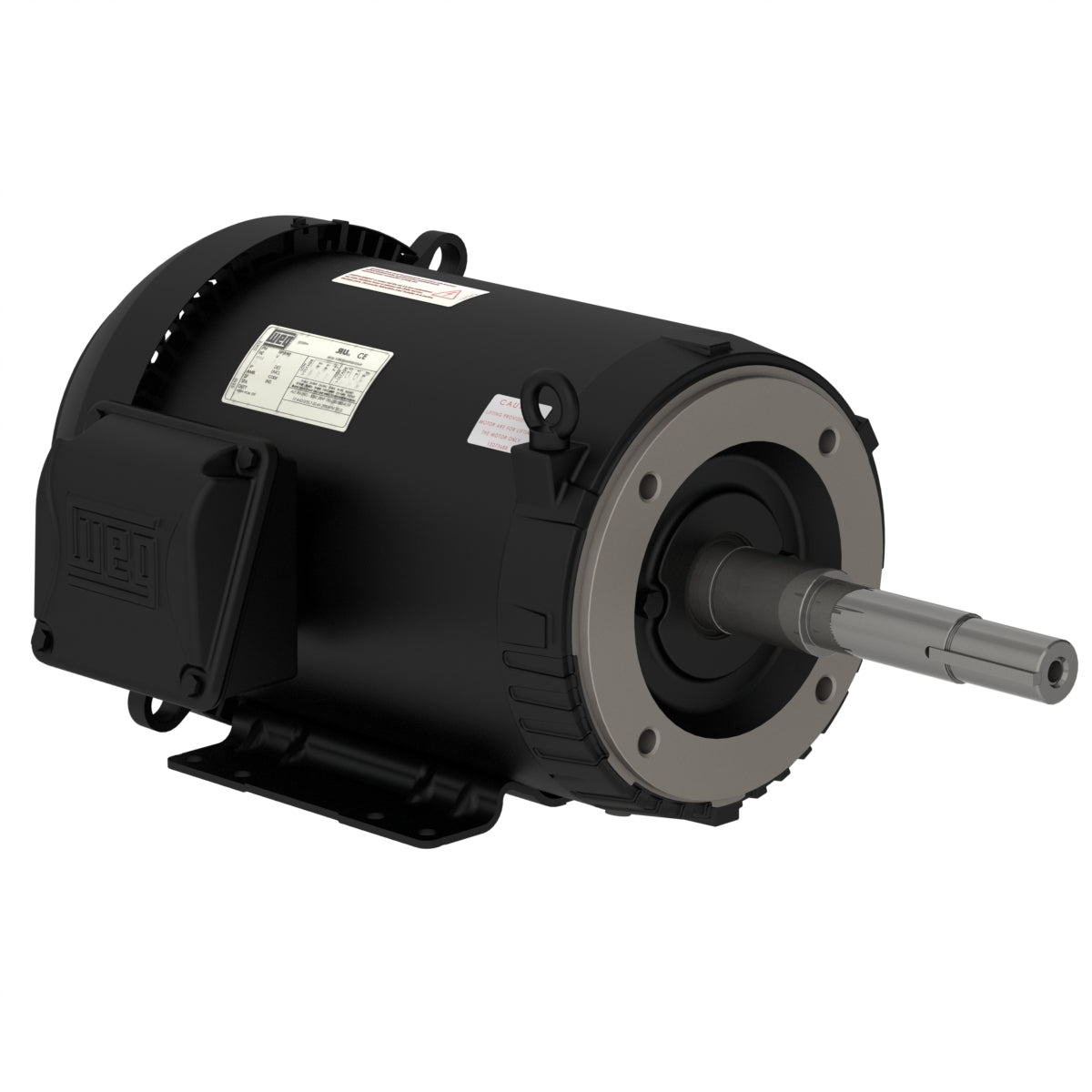

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. Ensure maximum performance and robustness in a variety of applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6JP
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 230/460 V
Rated current 45.4/22.7 A
L. R. Amperes 300/150 A
LRC 6.6x(Code G)
No load current 13.8/6.88 A
Rated torque 29.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 1.22 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
