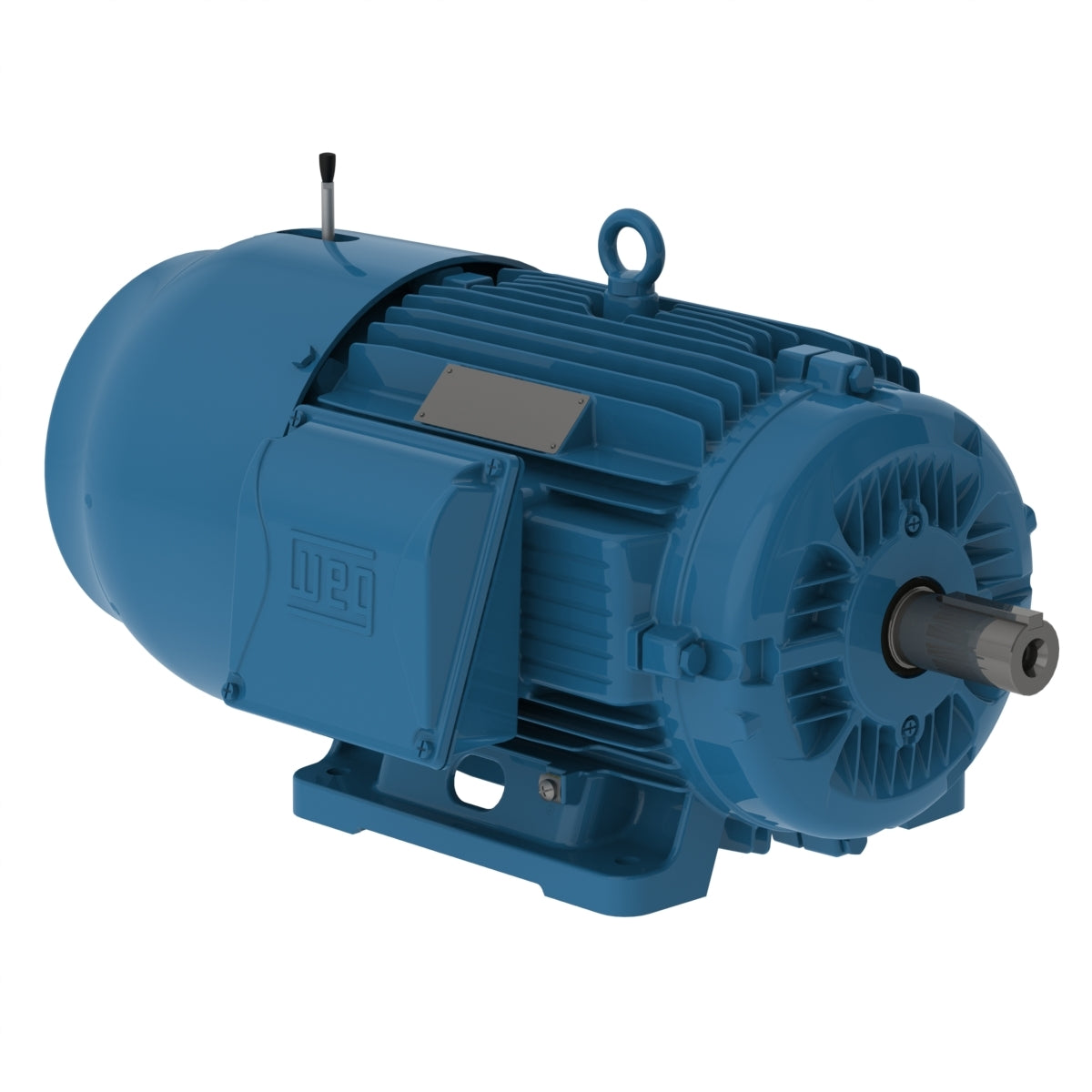

Weg Electric 02036ET3EBM256T-W22, 20 Hp, 3600 Rpm, 254/6T Frame, 230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Brake Motor NEMA Premium Efficiency.

02036ET3EBM256T-W22, 20 Hp, 3600 Rpm, 254/6T Frame, 230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Brake Motor NEMA Premium Efficiency.

Engineering Data

The W22 Brake Motor is the ideal motor for applications that require immediate, accurate and safe stops, and position control. They meet the needs of different applications, such as load elevators, hoists, shears, machining equipment, looms, packaging machines, conveyors, washing and bottling machines, bending machines, among others.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6T
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 46.4/23.2 A
L. R. Amperes 283/142 A
LRC 6.1x(Code G)
No load current 13.0/6.50 A
Rated torque 29.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 1.54 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
