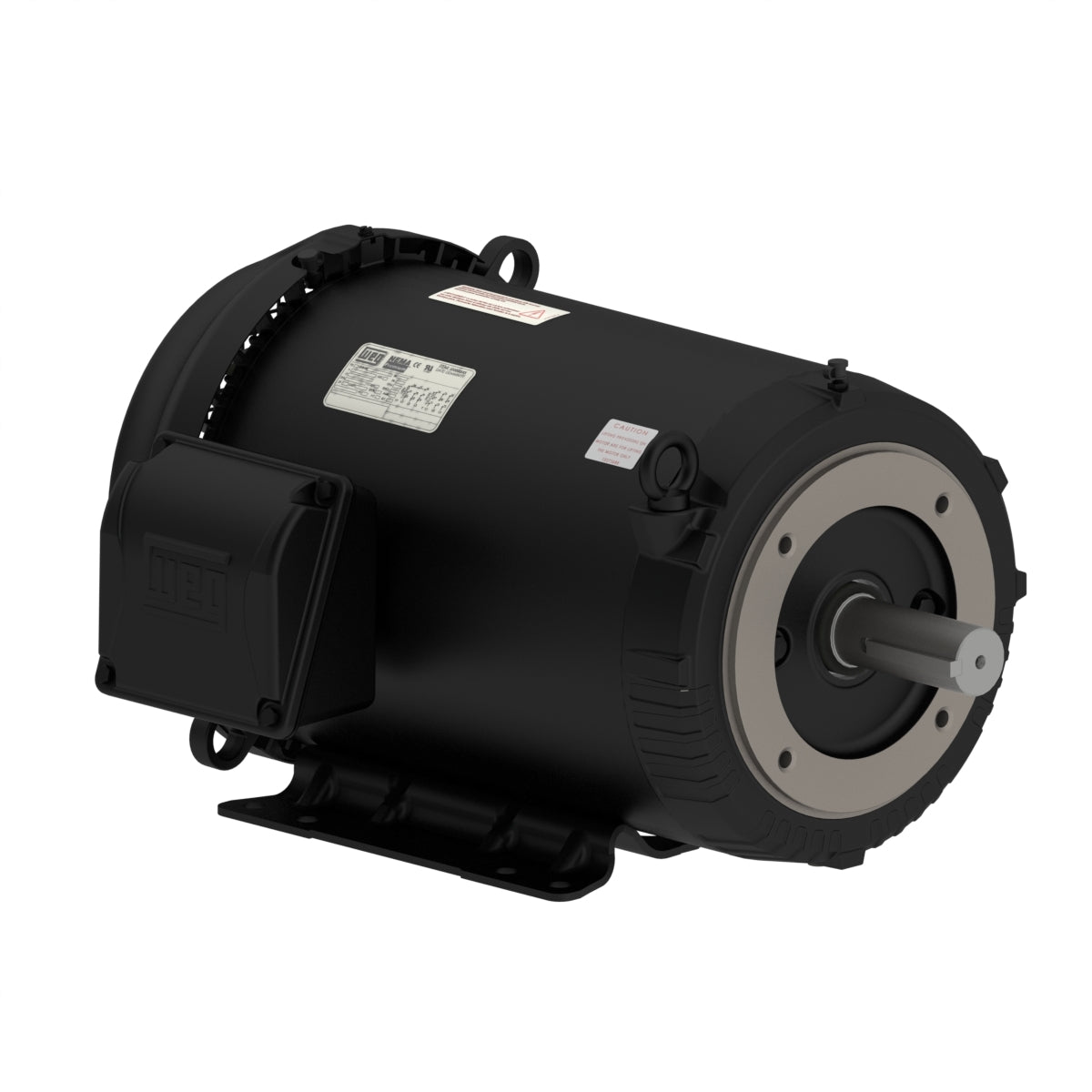

Weg Electric 02036ET3H256TC-S, 20 Hp, 3600 Rpm, 254/6TC Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

02036ET3H256TC-S, 20 Hp, 3600 Rpm, 254/6TC Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 575 V
Rated current 18.2 A
L. R. Amperes 120 A
LRC 6.6x(Code G)
No load current 5.50 A
Rated torque 29.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 1.22 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
