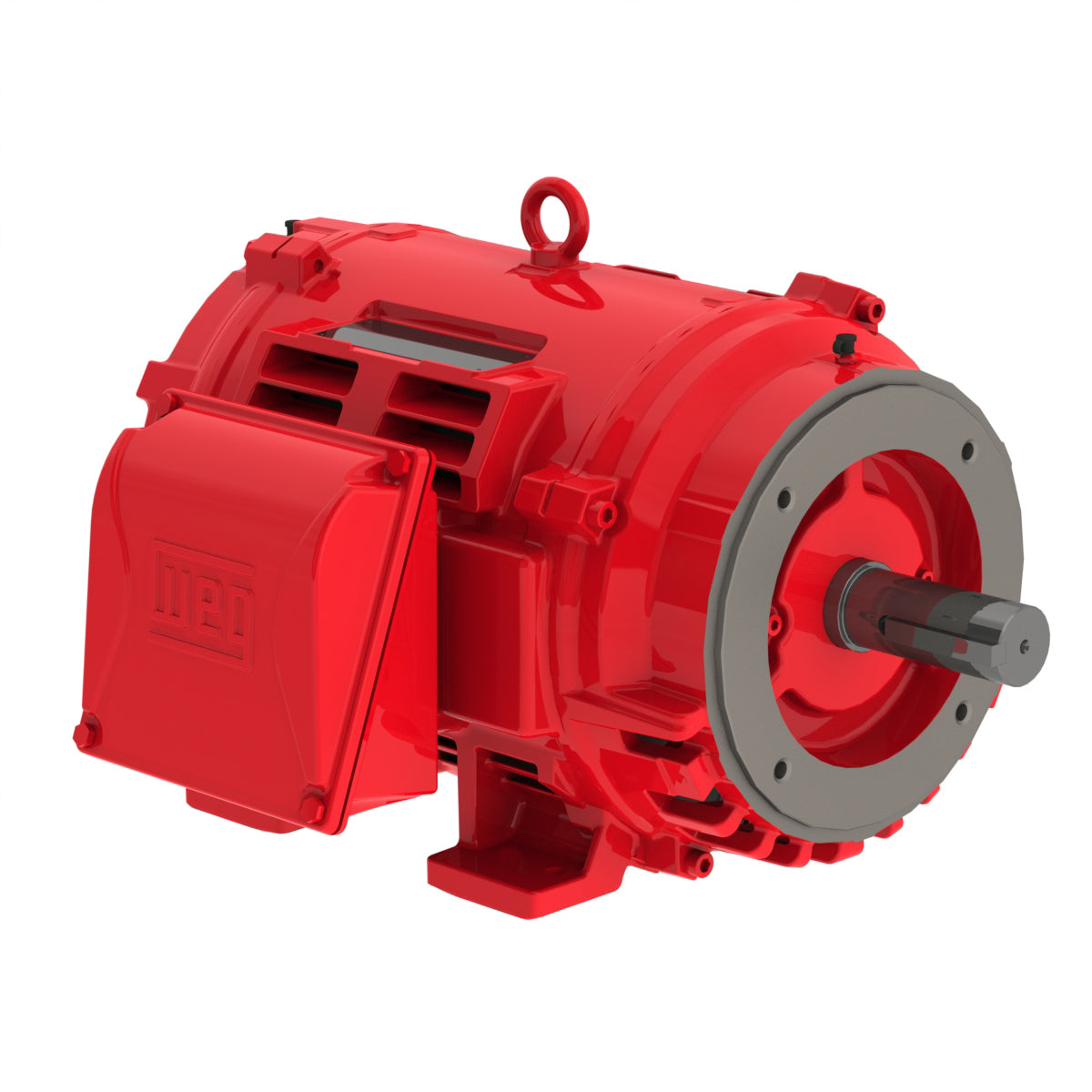

Weg Electric 02036OP3EFP254TC-W40, 20 Hp, 3600 Rpm, 254TC Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

02036OP3EFP254TC-W40, 20 Hp, 3600 Rpm, 254TC Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254TC
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 48.6/24.3 A
L. R. Amperes 287/143 A
LRC 5.9x(Code G)
No load current 14.0/7.00 A
Rated torque 29.8 ft.lb
Locked rotor torque 170 %
Breakdown torque 240 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.8718 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
