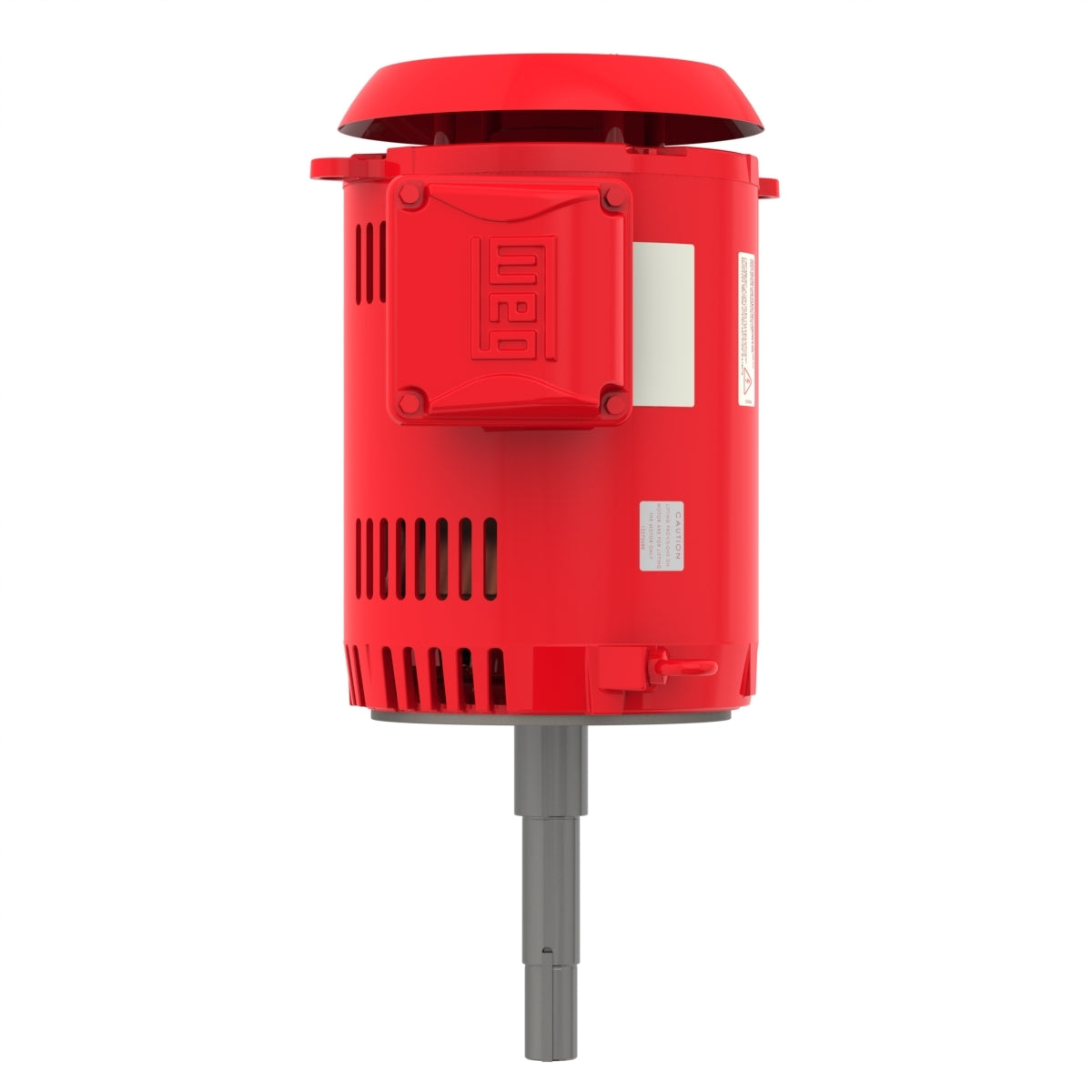

Weg Electric 02036OP3HFP254JMV-S, 20 Hp, 3600 Rpm, 254/6JM Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump High Efficiency.

02036OP3HFP254JMV-S, 20 Hp, 3600 Rpm, 254/6JM Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump High Efficiency.

Engineering Data

The W01 “JM” (mechanical seal) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6JM
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 575 V
Rated current 19.0 A
L. R. Amperes 114 A
LRC 6.0x(Code G)
No load current 7.30 A
Rated torque 29.8 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.6974 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
