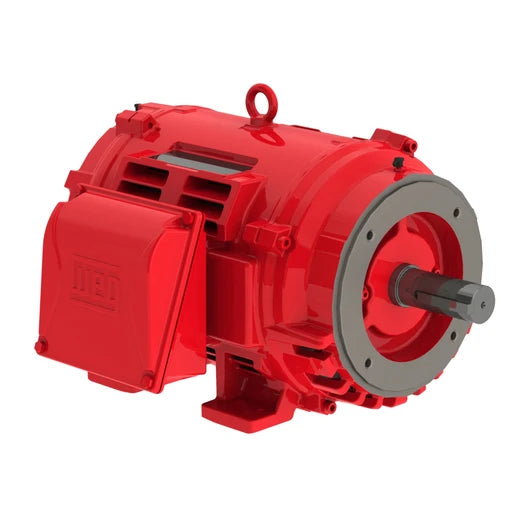

Weg Electric 02036OP3HFP254TC-W40, 20 Hp, 254TC Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14788724

Weg Electric 02036OP3HFP254TC-W40, 20 Hp, 254TC Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14788724

$1,307.41
$1,307.41
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 02036OP3HFP254TC-W40, 20 Hp, 254TC Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 14788724

SPECIFICATIONS

Frame 254TC
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 575 V
Rated current 19.4 A
L. R. Amperes 116 A
LRC 6.0x(Code G)
No load current 5.60 A
Rated torque 29.8 ft.lb
Locked rotor torque 170 %
Breakdown torque 240 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.8718 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 212 lb
