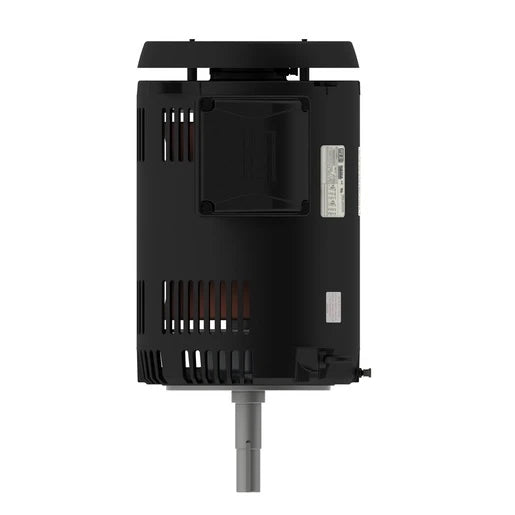

Weg Electric 02036OT3E254JMV-S, 20 Hp, 3600 Rpm, 254/6JM Frame, 230/460//190-220/380-415 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel JM Pump, 13482985

Weg Electric 02036OT3E254JMV-S, 20 Hp, 3600 Rpm, 254/6JM Frame, 230/460//190-220/380-415 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel JM Pump, 13482985

$1,962.45
$1,962.45
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 02036OT3E254JMV-S, 20 Hp, 3600 Rpm, 254/6JM Frame, 230/460//190-220/380-415 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel JM Pump, 13482985

SPECIFICATIONS

Frame 254/6JM
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 47.6/23.8 A
L. R. Amperes 286/143 A
LRC 6.0x(Code G)
No load current 17.0/8.50 A
Rated torque 29.8 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.7848 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 180 lb
