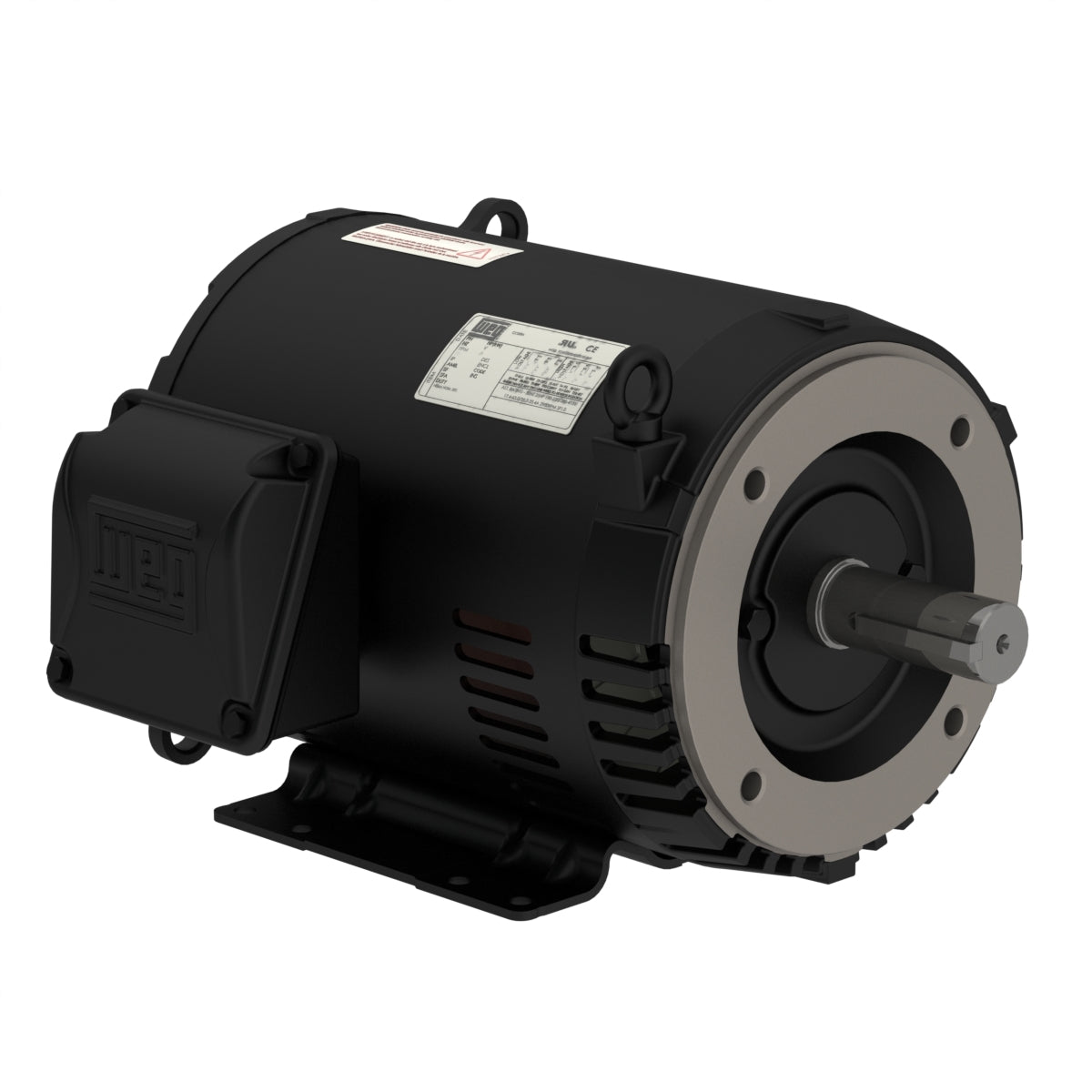

Weg Electric 02036OT3E254TC-S, 20 Hp, 3600 Rpm, 254/6TC Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

02036OT3E254TC-S, 20 Hp, 3600 Rpm, 254/6TC Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 47.6/23.8 A
L. R. Amperes 286/143 A
LRC 6.0x(Code G)
No load current 17.0/8.50 A
Rated torque 29.8 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.7848 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
