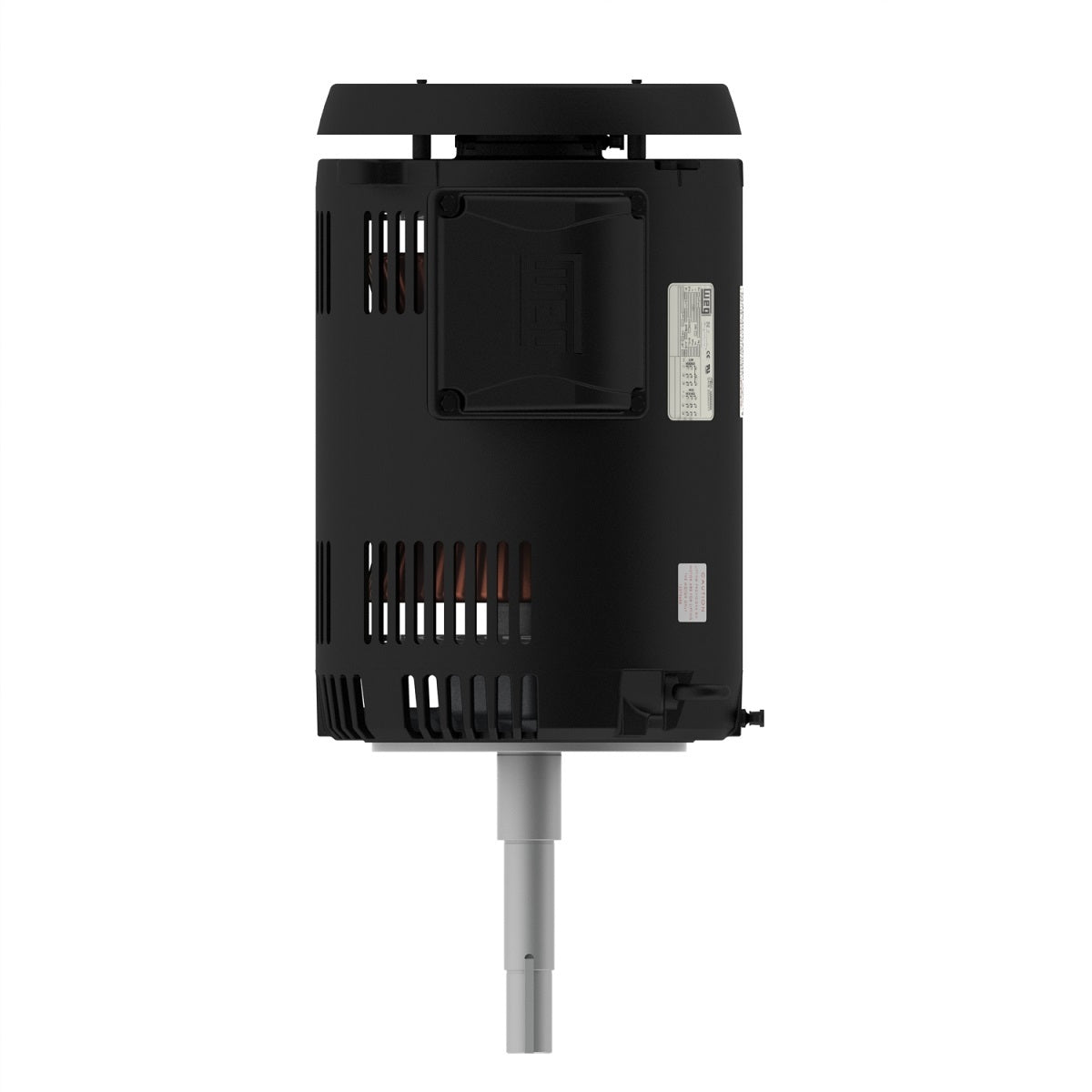

Weg Electric 02036OT3H254JPV-S, 20 Hp, 3600 Rpm, 254/6JP Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump NEMA Premium Efficiency.

02036OT3H254JPV-S, 20 Hp, 3600 Rpm, 254/6JP Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6JP
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 575 V
Rated current 19.0 A
L. R. Amperes 114 A
LRC 6.0x(Code G)
No load current 6.80 A
Rated torque 29.8 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.7848 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
