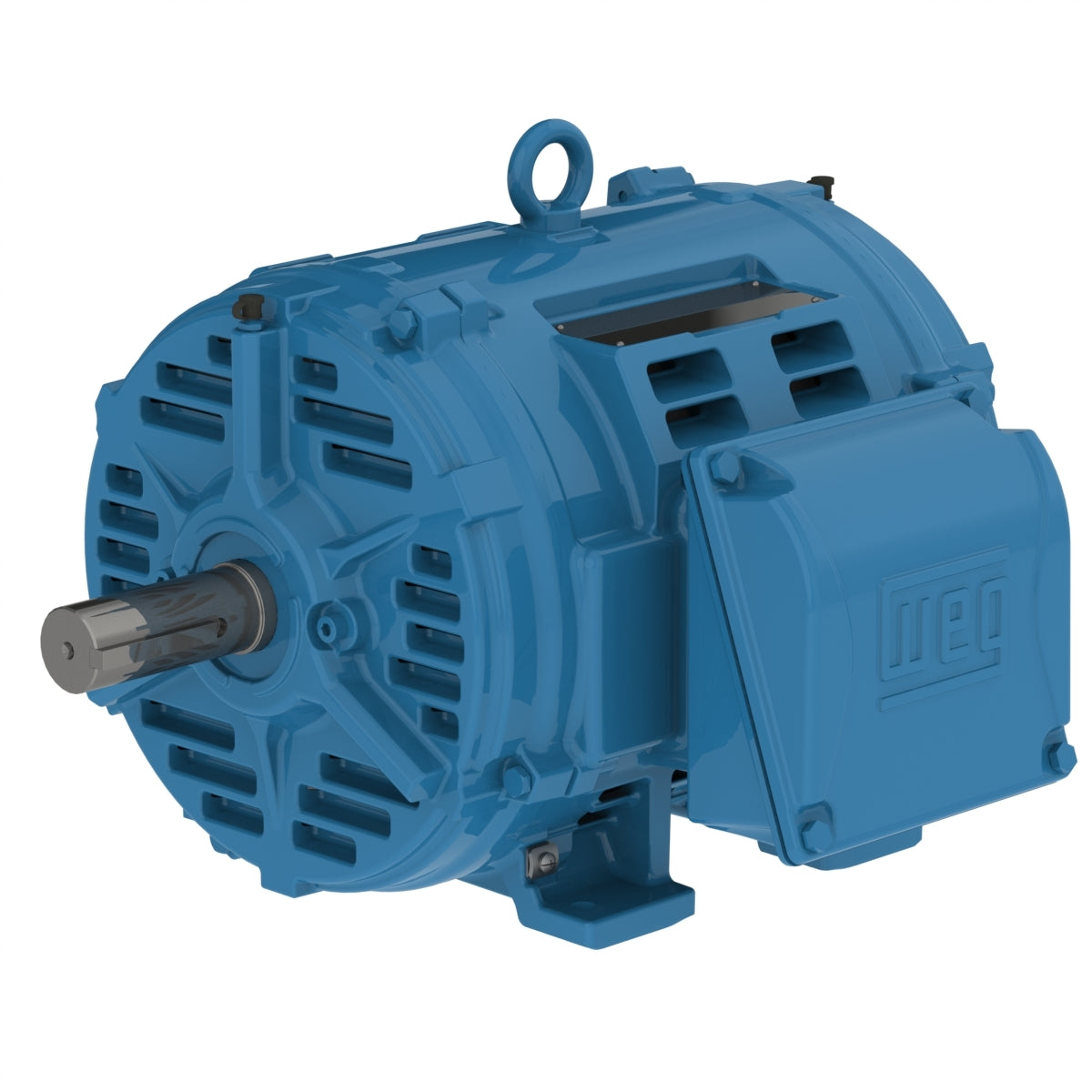

Weg Electric 02036OT3P254TF2-W40, 20 Hp, 3600 Rpm, 254T Frame, 200 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

02036OT3P254TF2-W40, 20 Hp, 3600 Rpm, 254T Frame, 200 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

Engineering Data

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC01 - ODP

Frame 254T
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 200 V
Rated current 55.9 A
L. R. Amperes 352 A
LRC 6.3x(Code G)
No load current 19.3 A
Rated torque 29.7 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.8718 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
