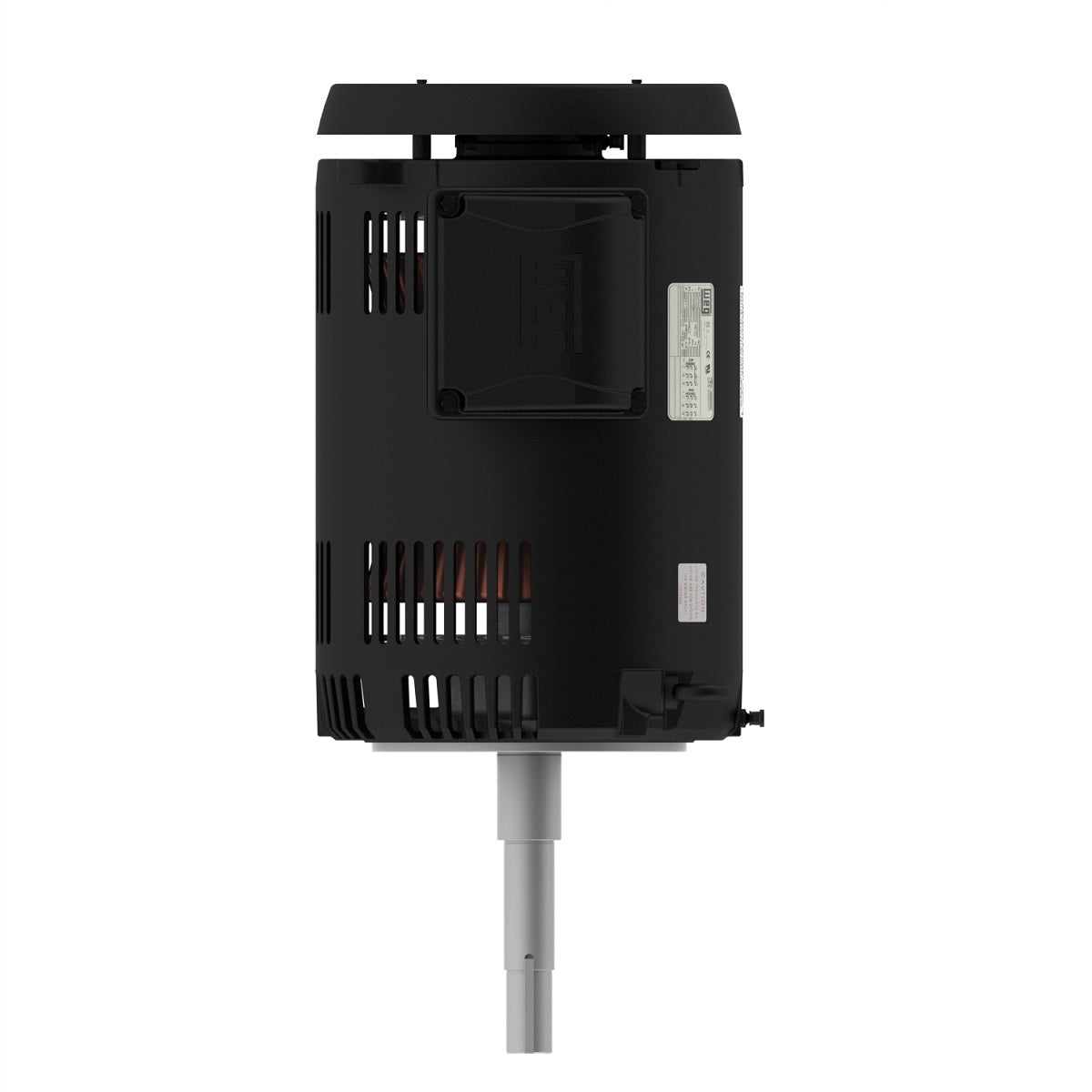

Weg Electric 02036OT3V254JPV-S, 20 Hp, 254/6JP Frame, 3600 RPM, 200/400 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump NEMA Premium Efficiency.

02036OT3V254JPV-S, 20 Hp, 254/6JP Frame, 3600 RPM, 200/400 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump NEMA Premium Efficiency.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. They maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 20 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6JP
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 200/400 V
Rated current 54.7/27.4 A
L. R. Amperes 328/164 A
LRC 6.0x(Code G)
No load current 19.6/9.78 A
Rated torque 29.8 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.7848 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
