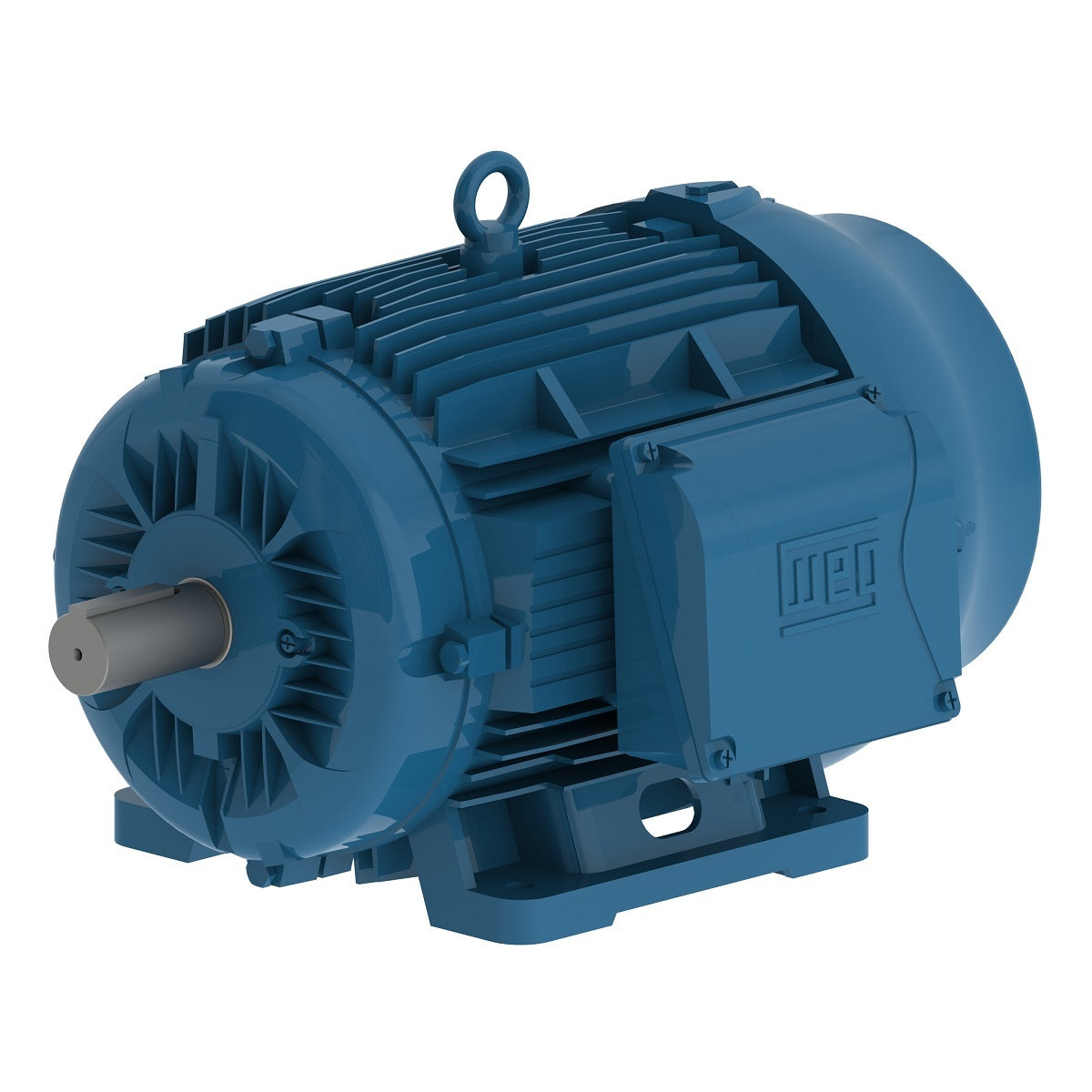

Weg Electric 02218ET3Y180L-W22, 30 Hp, 1800 Rpm, 180L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

02218ET3Y180L-W22, 30 Hp, 1800 Rpm, 180L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 30 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 180L
Output 30 HP (22 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 36.0 A
L. R. Amperes 342 A
LRC 9.5
No load current 16.8 A
Rated torque 88.8 ft.lb
Locked rotor torque 380 %
Breakdown torque 390 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 5.39 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
