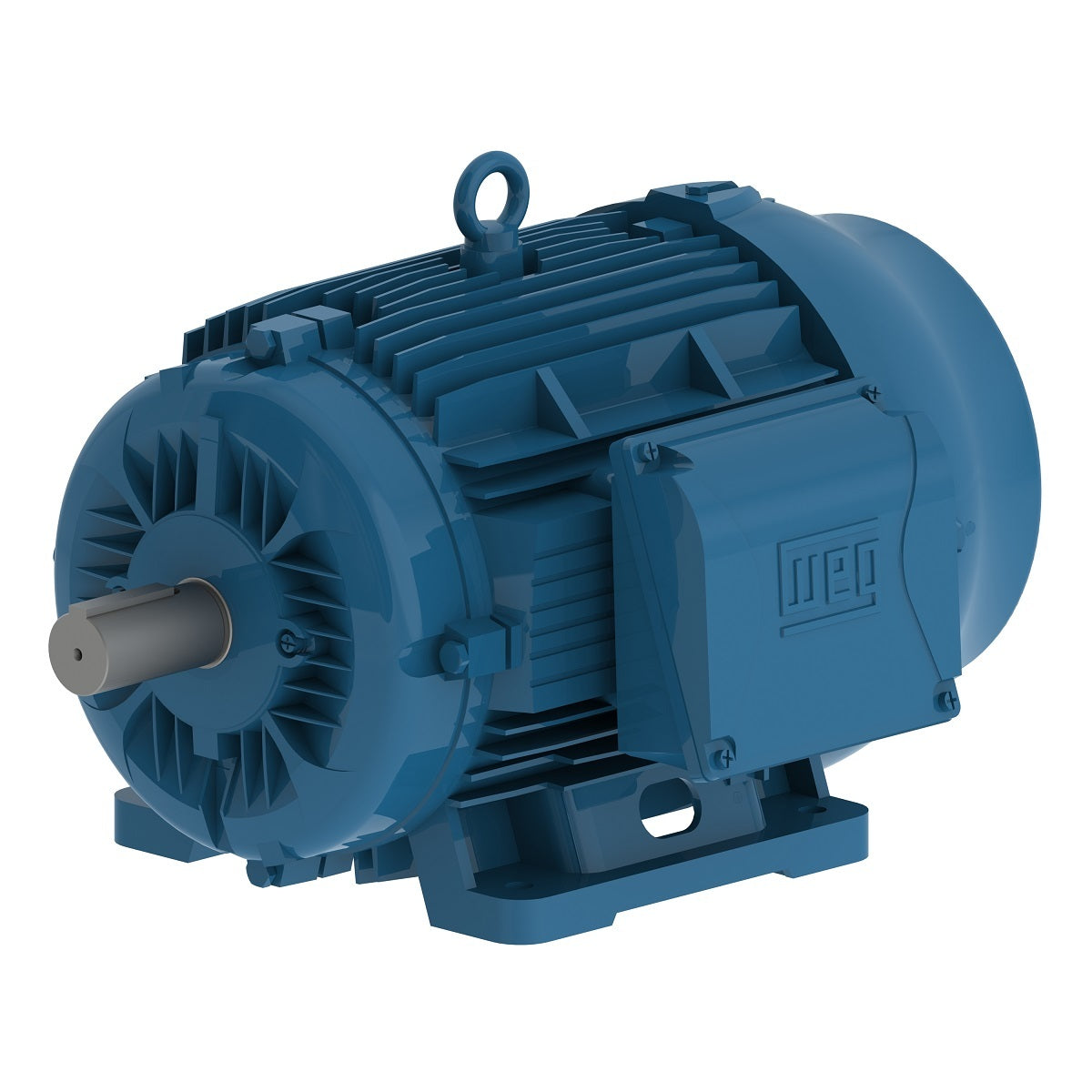

Weg Electric 02236ET3Y180M-W22, 30 Hp, 3600 Rpm, 180M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

02236ET3Y180M-W22, 30 Hp, 3600 Rpm, 180M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 30 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 180M
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 460 V
Rated current 35.2 A
L. R. Amperes 306 A
LRC 8.7
No load current 14.0 A
Rated torque 44.2 ft.lb
Locked rotor torque 400 %
Breakdown torque 409 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
