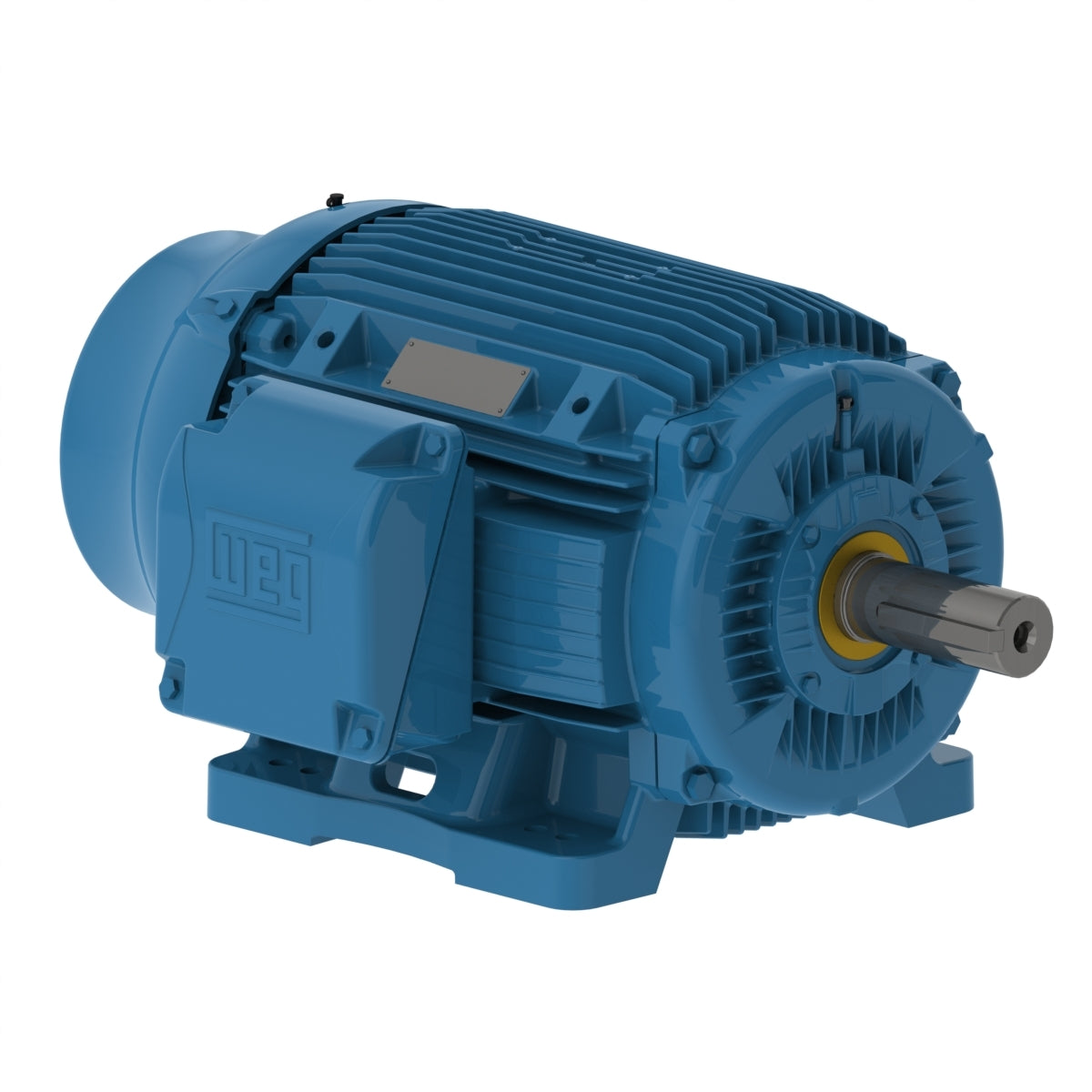

Weg Electric 02509ST3QIE326TC-W22, 25 Hp, 900 Rpm, 324/6TC Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

02509ST3QIE326TC-W22, 25 Hp, 900 Rpm, 324/6TC Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

The W22 IEEE841 motors are designed for the petrochemical and chemical industries. They have rugged construction and long service life, for the most demanding industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 324/6TC
Output 25 HP (18.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 460 V
Rated current 35.9 A
L. R. Amperes 187 A
LRC 5.2x(Code G)
No load current 20.0 A
Rated torque 149 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 11.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
