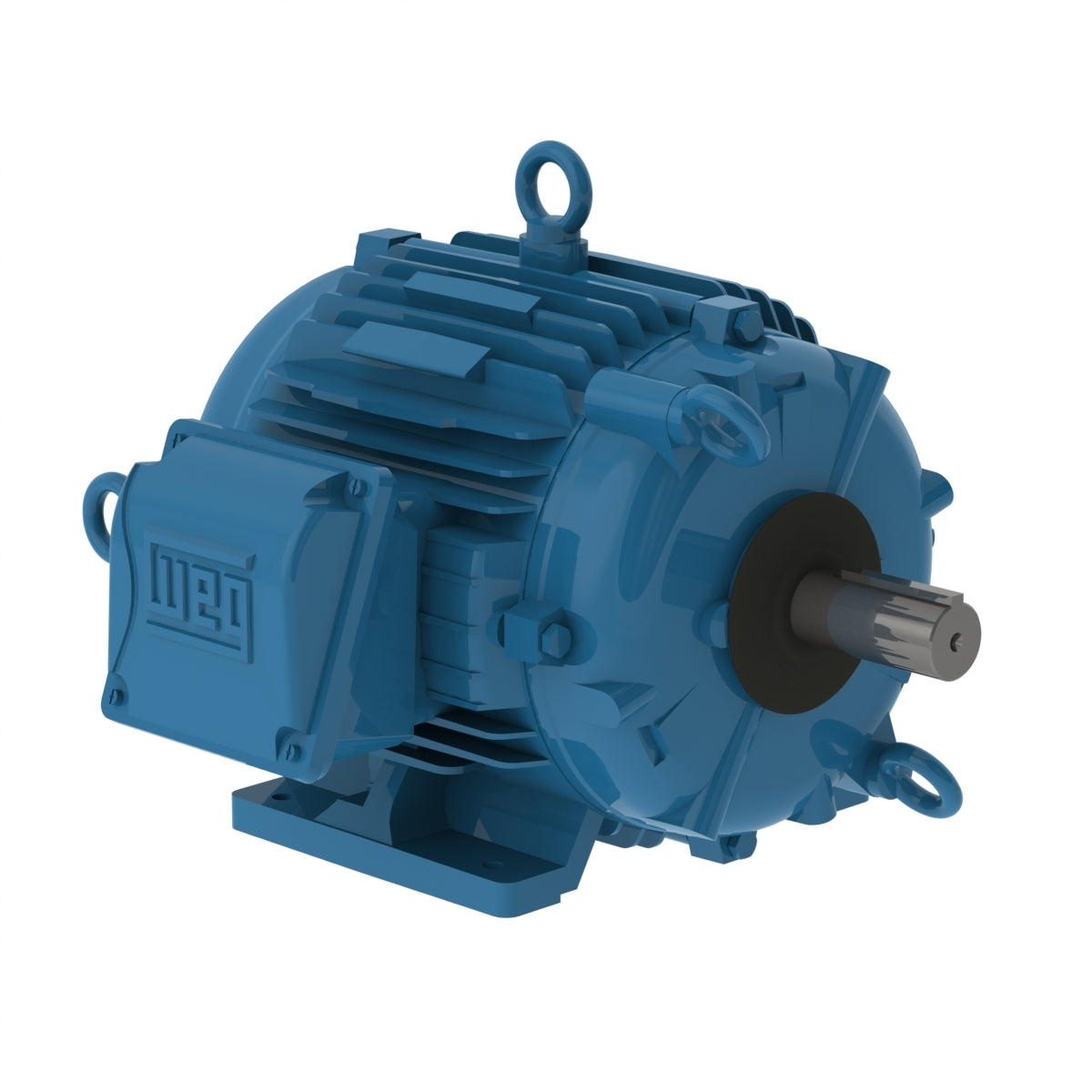

Weg Electric 02512AT3HCT324TF1-W2, 30 Hp, 1200 Rpm, 324T Frame, 575 Vac, TEAO, 3 PH, Foot-mounted, W22 Cooling Tower NEMA Premium Efficiency.

02512AT3HCT324TF1-W2, 30 Hp, 1200 Rpm, 324T Frame, 575 Vac, TEAO, 3 PH, Foot-mounted, W22 Cooling Tower NEMA Premium Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 324T
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 575 V
Rated current 24.6 A
L. R. Amperes 153 A
LRC 6.2x(Code G)
No load current 11.2 A
Rated torque 111 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
