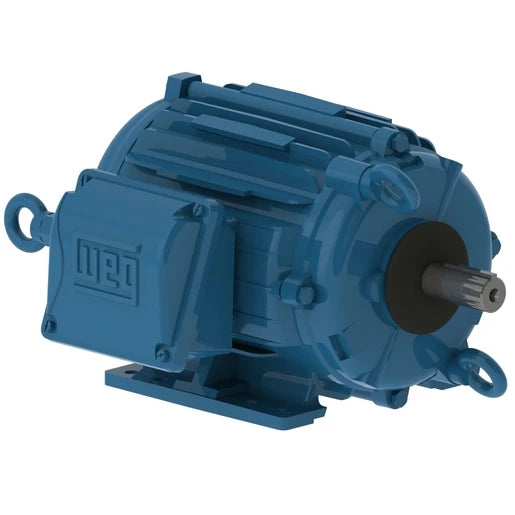

Weg Electric 02512AT3PCT324TF1-W2, 25 Hp, 324T Frame, 1200 RPM, 200-208 Vac, TEAO, 3 PH, Foot-mounted, W22 Cooling Tower NEMA Premium Efficiency, 14408921

Weg Electric 02512AT3PCT324TF1-W2, 25 Hp, 324T Frame, 1200 RPM, 200-208 Vac, TEAO, 3 PH, Foot-mounted, W22 Cooling Tower NEMA Premium Efficiency, 14408921

$5,081.01
$5,081.01
Sale Sold out
Shipping calculated at checkout.

Weg Electric 02512AT3PCT324TF1-W2, 25 Hp, 324T Frame, 1200 RPM, 200-208 Vac, TEAO, 3 PH, Foot-mounted, W22 Cooling Tower NEMA Premium Efficiency, 14408921

SPECIFICATIONS

Manufacturer Part Number 02512AT3PCT324TF1-W2
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 25HP 6P 324T WFF2
Type Cooling Tower Duty
Horsepower 25 hp
Kilowatts 18.6 kW
Speed 1,200 RPM
Number of Poles 6
Phase 3
Frequency 60 Hz
NEMA Frame 324T
AC Voltage 200 VAC
Nominal Voltage 208 VAC
Enclosure Totally Enclosed Air Over
Mounting Foot Mount
Current Rating 67.2 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Bearing Type Ball
Shaft Diameter 2.13 "
Overload Protection None
Length 26.24 "
Approvals cCSAus, cULus
Net Weight 547.769 lbs
Gross Weight 547.769 lbs
