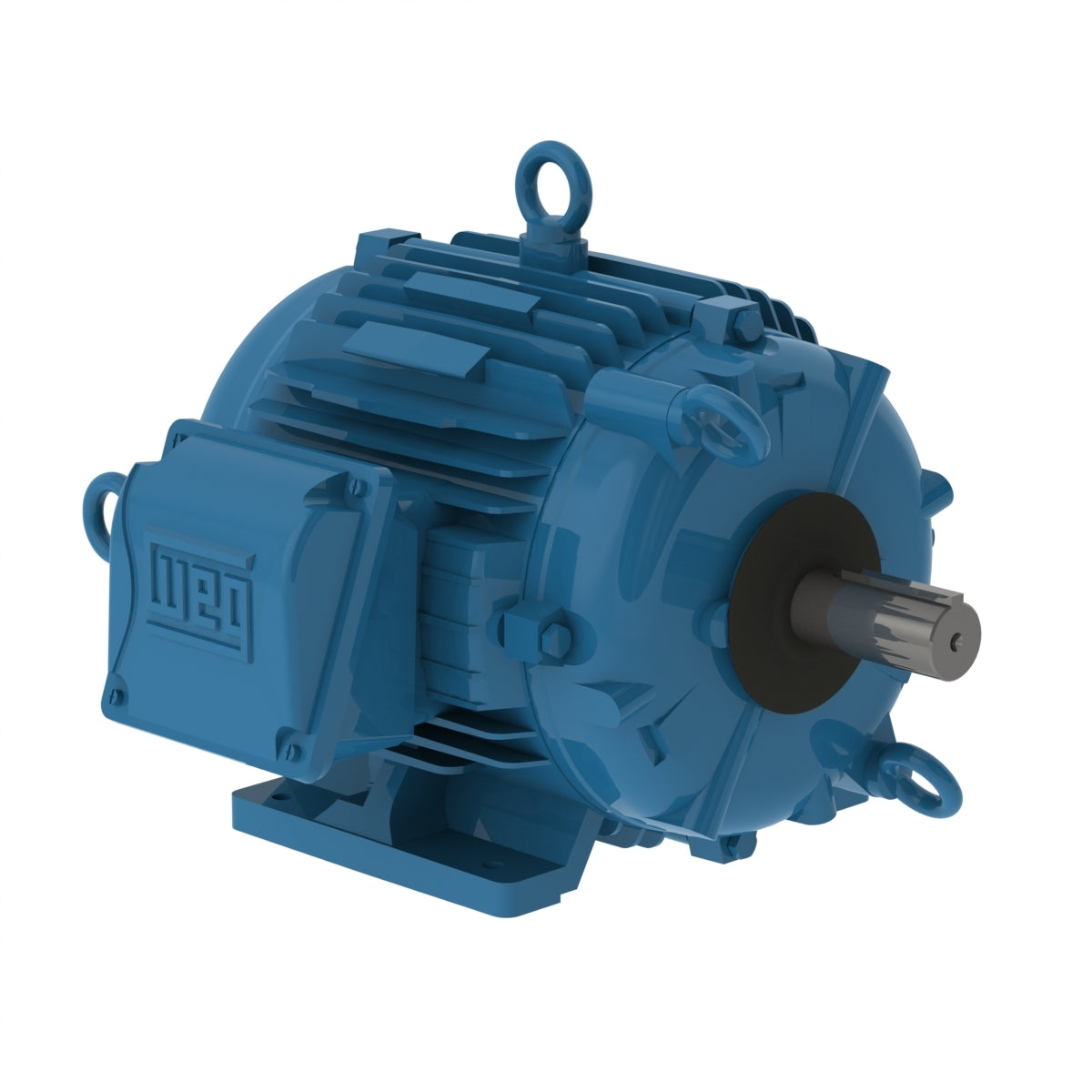

Weg Electric 02518AT3PCT284TF1-W2, 25 Hp, 1800 Rpm, 284T Frame, 200 Vac, TEAO, 3 PH, Foot-mounted, W22 Cooling Tower NEMA Premium Efficiency.

02518AT3PCT284TF1-W2, 25 Hp, 1800 Rpm, 284T Frame, 200 Vac, TEAO, 3 PH, Foot-mounted, W22 Cooling Tower NEMA Premium Efficiency.

Engineering Data

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC410 - TEAO

Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 200 V
Rated current 67.8 A
L. R. Amperes 421 A
LRC 6.2x(Code G)
No load current 24.1 A
Rated torque 74.4 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
