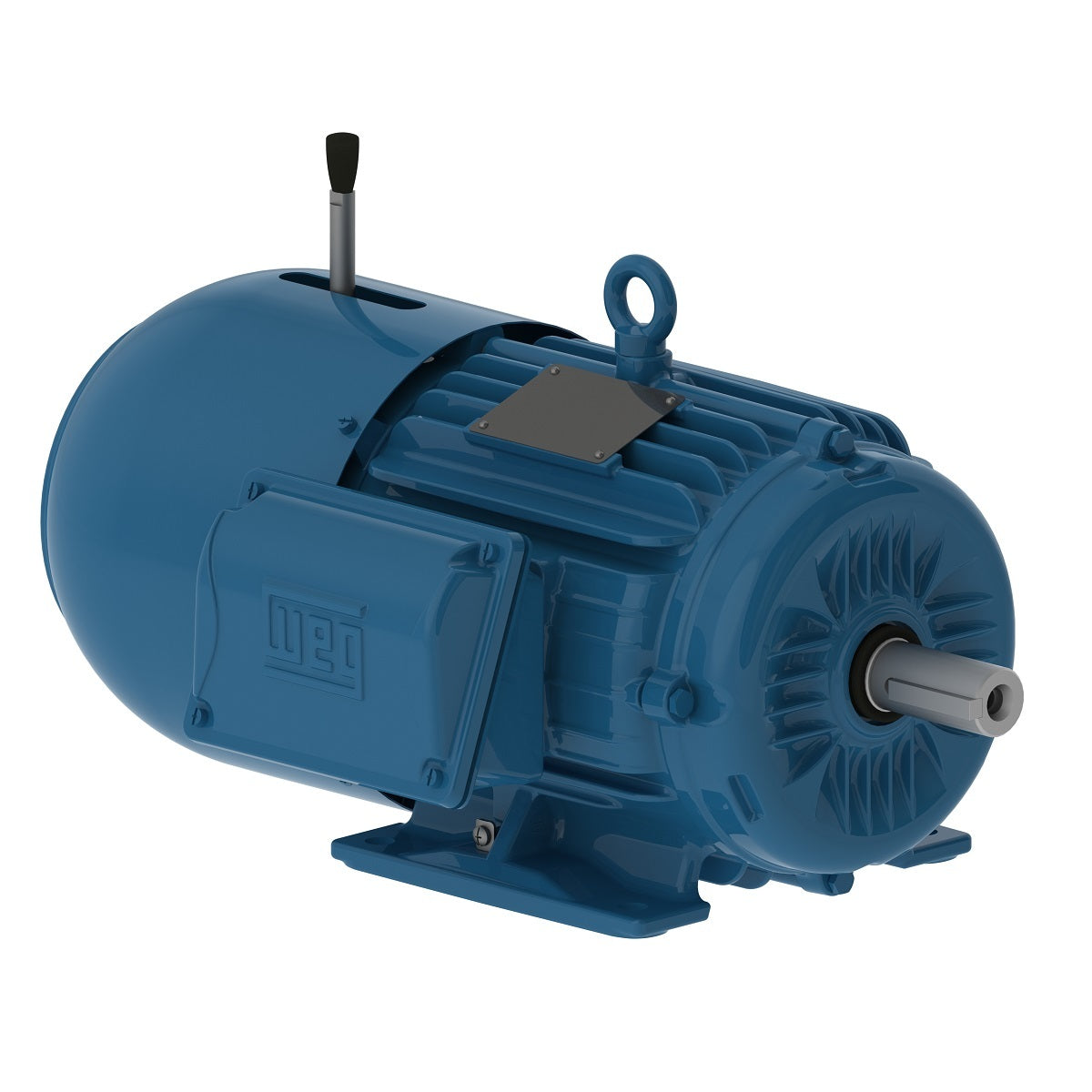

Weg Electric 02518ET3EBM284T-W22, 25 Hp, 284/6T Frame, 1800 RPM, 230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Brake Motor NEMA Premium Efficiency.

02518ET3EBM284T-W22, 25 Hp, 284/6T Frame, 1800 RPM, 230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Brake Motor NEMA Premium Efficiency.

Engineering Data

The W22 Brake Motor is the ideal motor for applications that require immediate, accurate and safe stops, and position control. They meet the needs of different applications, such as load elevators, hoists, shears, machining equipment, looms, packaging machines, conveyors, washing and bottling machines, bending machines, among others.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 284/6T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 59.0/29.5 A
L. R. Amperes 366/183 A
LRC 6.2x(Code G)
No load current 21.0/10.5 A
Rated torque 74.4 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 5.11 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
