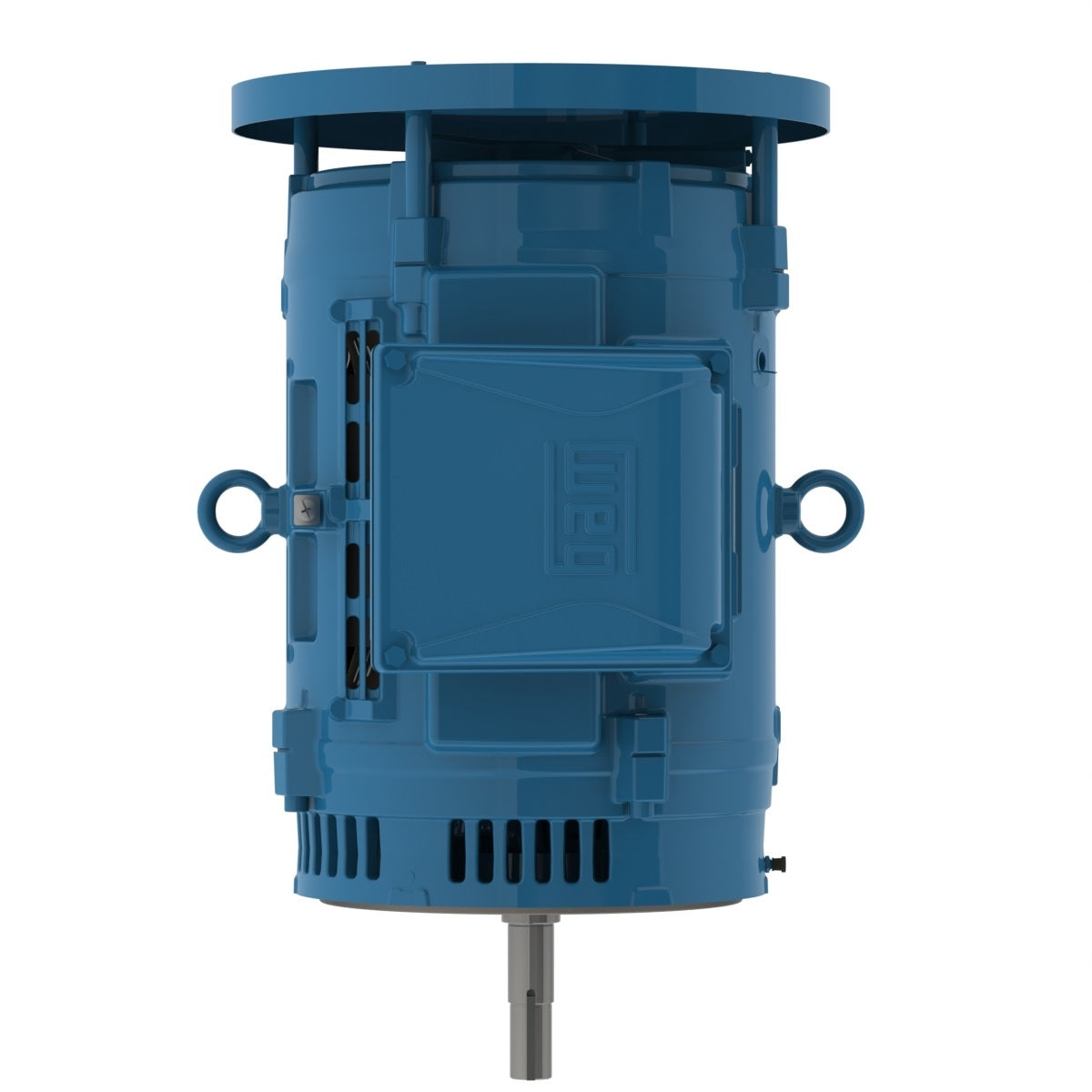

Weg Electric 02518OT3E284JPV-W40, 25 Hp, 1800 Rpm, 284/6JM Frame, 230/460//380 Vac, ODP, 3 PH, Footless, W40 JM Pump NEMA Premium Efficiency.

02518OT3E284JPV-W40, 25 Hp, 1800 Rpm, 284/6JM Frame, 230/460//380 Vac, ODP, 3 PH, Footless, W40 JM Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 25 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 284/6JM
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 59.0/29.5 A
L. R. Amperes 389/195 A
LRC 6.6x(Code G)
No load current 22.0/11.0 A
Rated torque 74.2 ft.lb
Locked rotor torque 270 %
Breakdown torque 280 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 3.71 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
