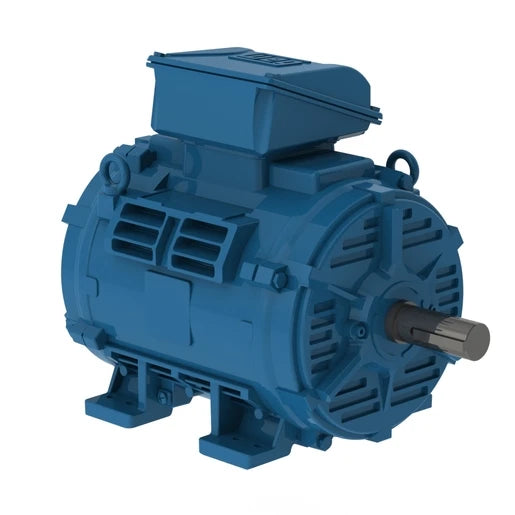

Weg Electric 02518OT3E284TF3-W40, 25 Hp, 284/6T Frame, 1800 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 16102927

Weg Electric 02518OT3E284TF3-W40, 25 Hp, 284/6T Frame, 1800 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 16102927

$1,922.40
$1,922.40
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 02518OT3E284TF3-W40, 25 Hp, 284/6T Frame, 1800 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency, 16102927

SPECIFICATIONS

Frame 284/6T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 59.0/29.5 A
L. R. Amperes 372/186 A
LRC 6.3x(Code G)
No load current 20.8/10.4 A
Rated torque 74.2 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 3.71 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 359 lb
