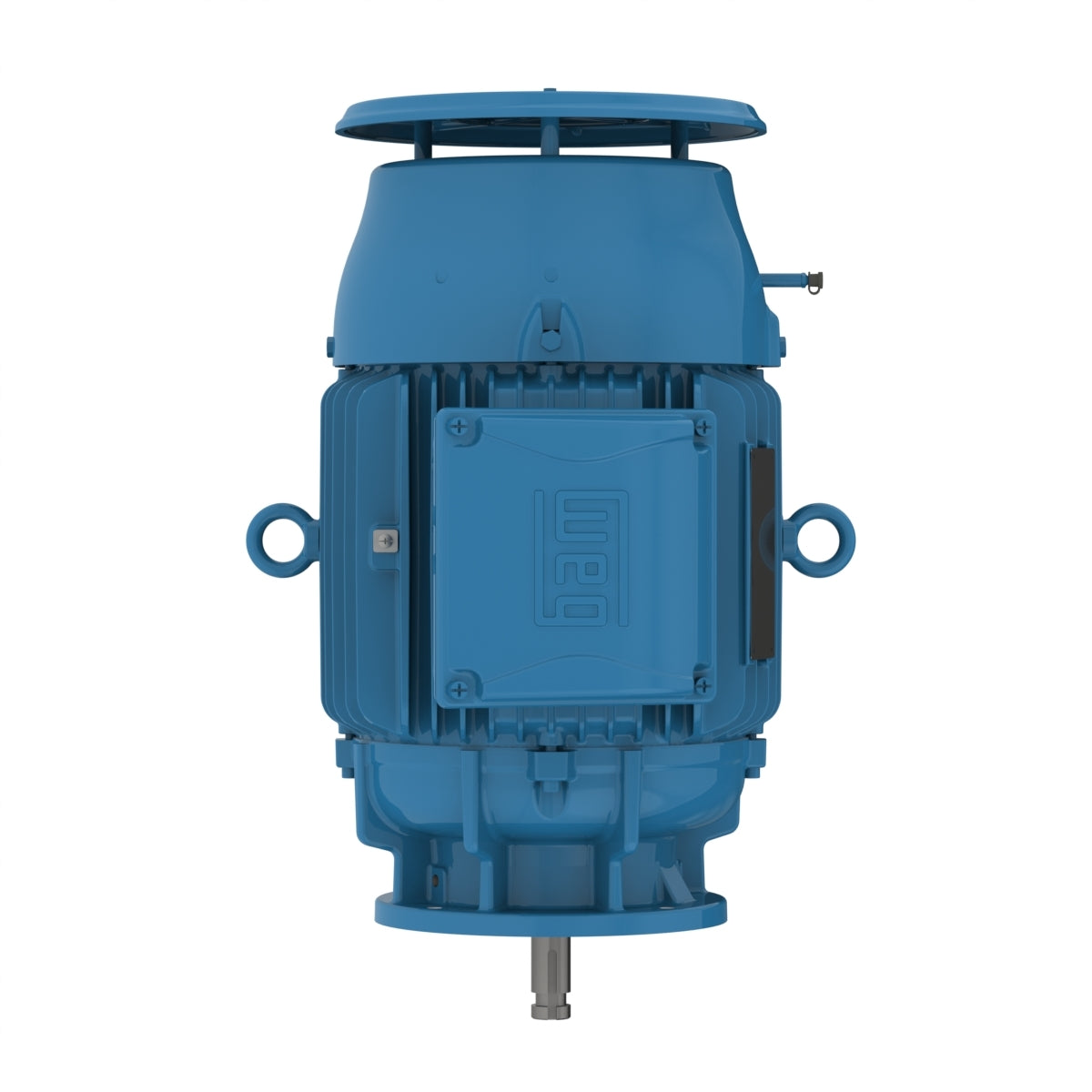

Weg Electric 02536ET3E256HP-W22, 25 Hp, 3600 Rpm, 256HP Frame, 208-230/460//380 Vac, TEFC, 3 PH, Footless, W22 P Base NEMA Premium Efficiency.

02536ET3E256HP-W22, 25 Hp, 3600 Rpm, 256HP Frame, 208-230/460//380 Vac, TEFC, 3 PH, Footless, W22 P Base NEMA Premium Efficiency.

Engineering Data

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting Footless
Flange P
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 256HP
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 63.0-57.0/28.5 A
L. R. Amperes 391-353/177 A
LRC 6.2x(Code G)
No load current 14.1-16.4/8.20 A
Rated torque 37.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 280 %
Locked rotor time 28s (cold) 16s (hot)
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
