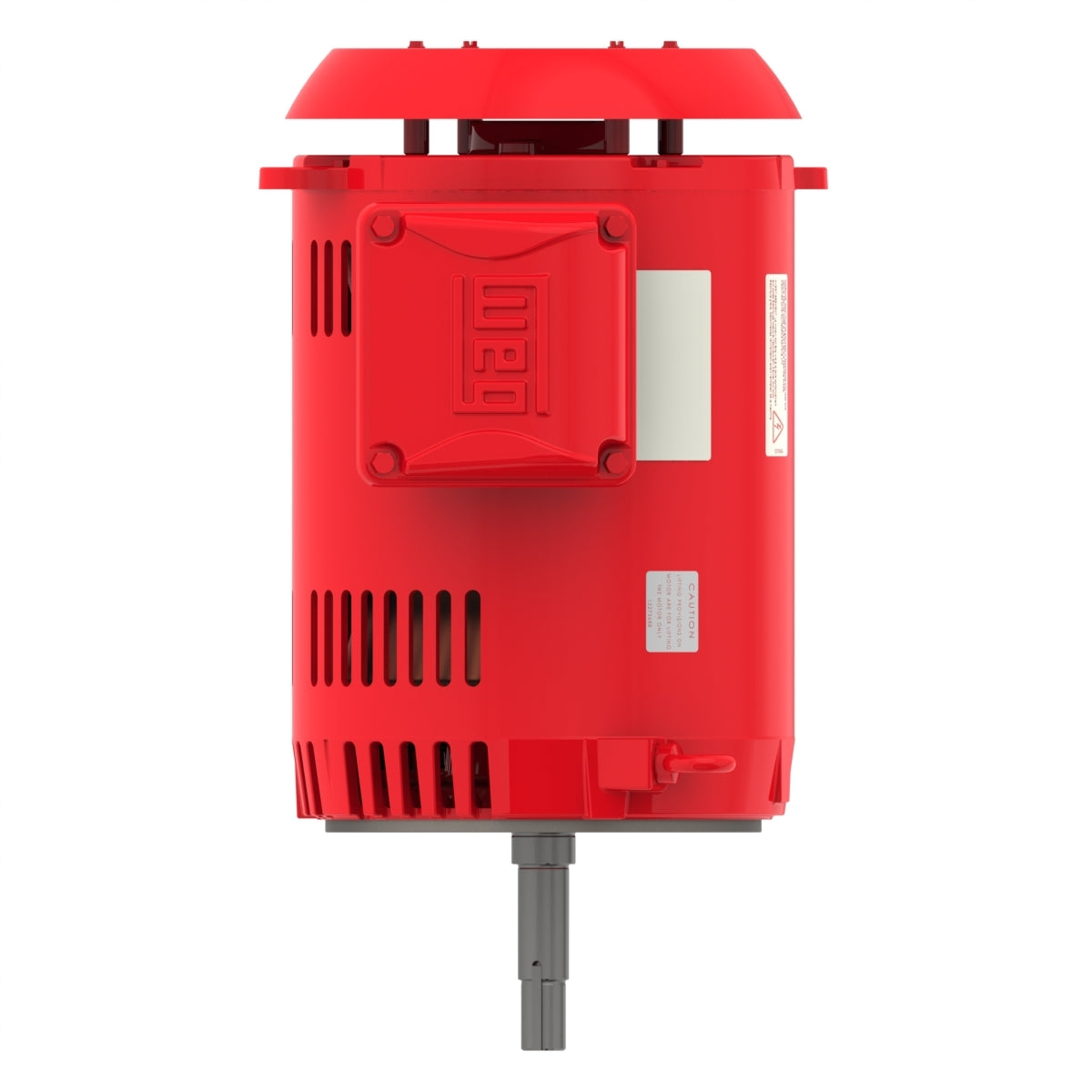

Weg Electric 02536OP3EFP256JMV-S, 25 Hp, 3600 Rpm, 254/6JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump NEMA High Efficiency.

02536OP3EFP256JMV-S, 25 Hp, 3600 Rpm, 254/6JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump NEMA High Efficiency.

Engineering Data

The W01 “JM” (mechanical seal) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6JM
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 58.0/29.0 A
L. R. Amperes 360/180 A
LRC 6.2x(Code G)
No load current 22.4/11.2 A
Rated torque 37.2 ft.lb
Locked rotor torque 180 %
Breakdown torque 280 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.8718 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
