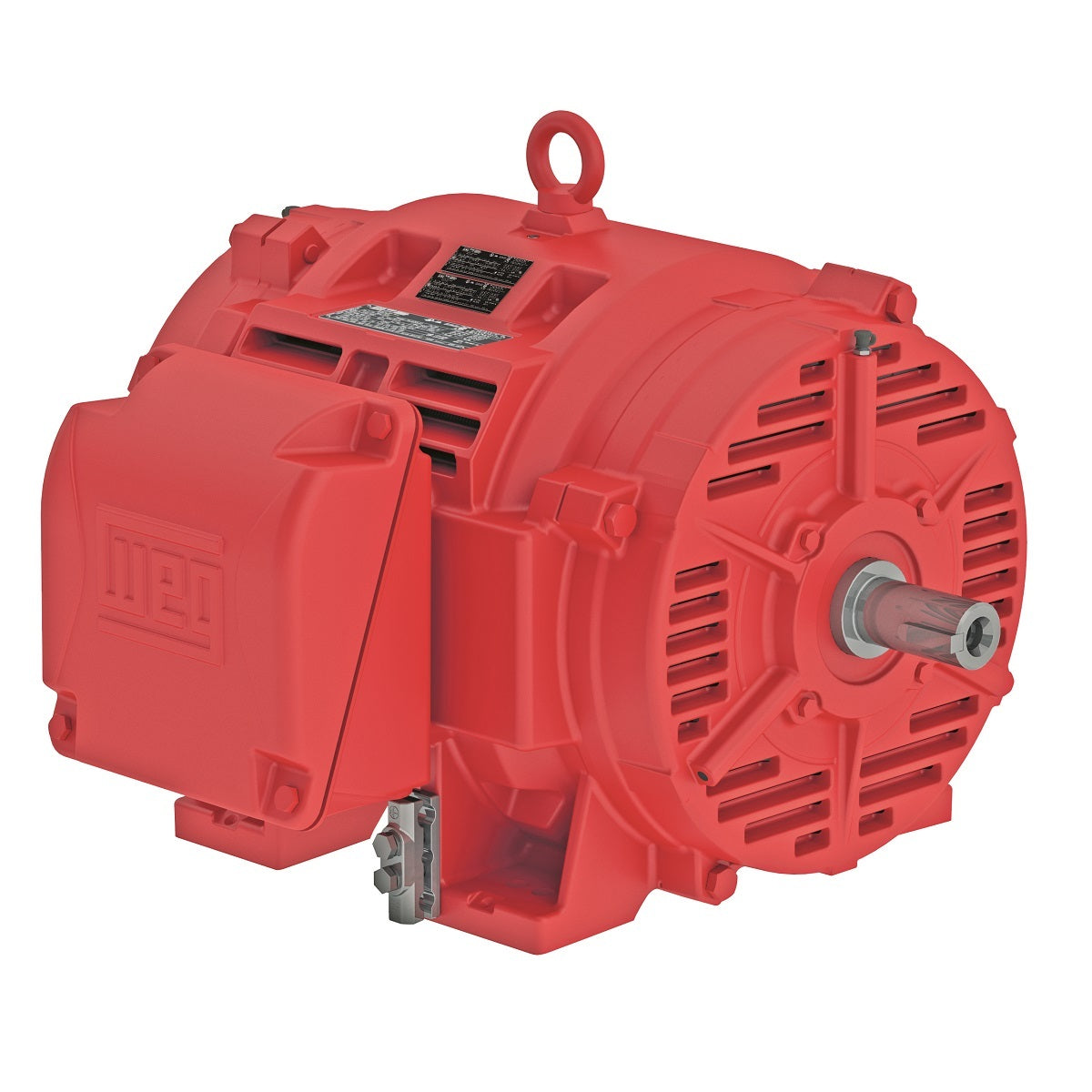

Weg Electric 02536OP3HFP256T-W40, 25 Hp, 3600 Rpm, 254/6T Frame, 575 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

02536OP3HFP256T-W40, 25 Hp, 3600 Rpm, 254/6T Frame, 575 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 575 V
Rated current 23.8 A
L. R. Amperes 145 A
LRC 6.1x(Code G)
No load current 7.20 A
Rated torque 37.2 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.9592 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
