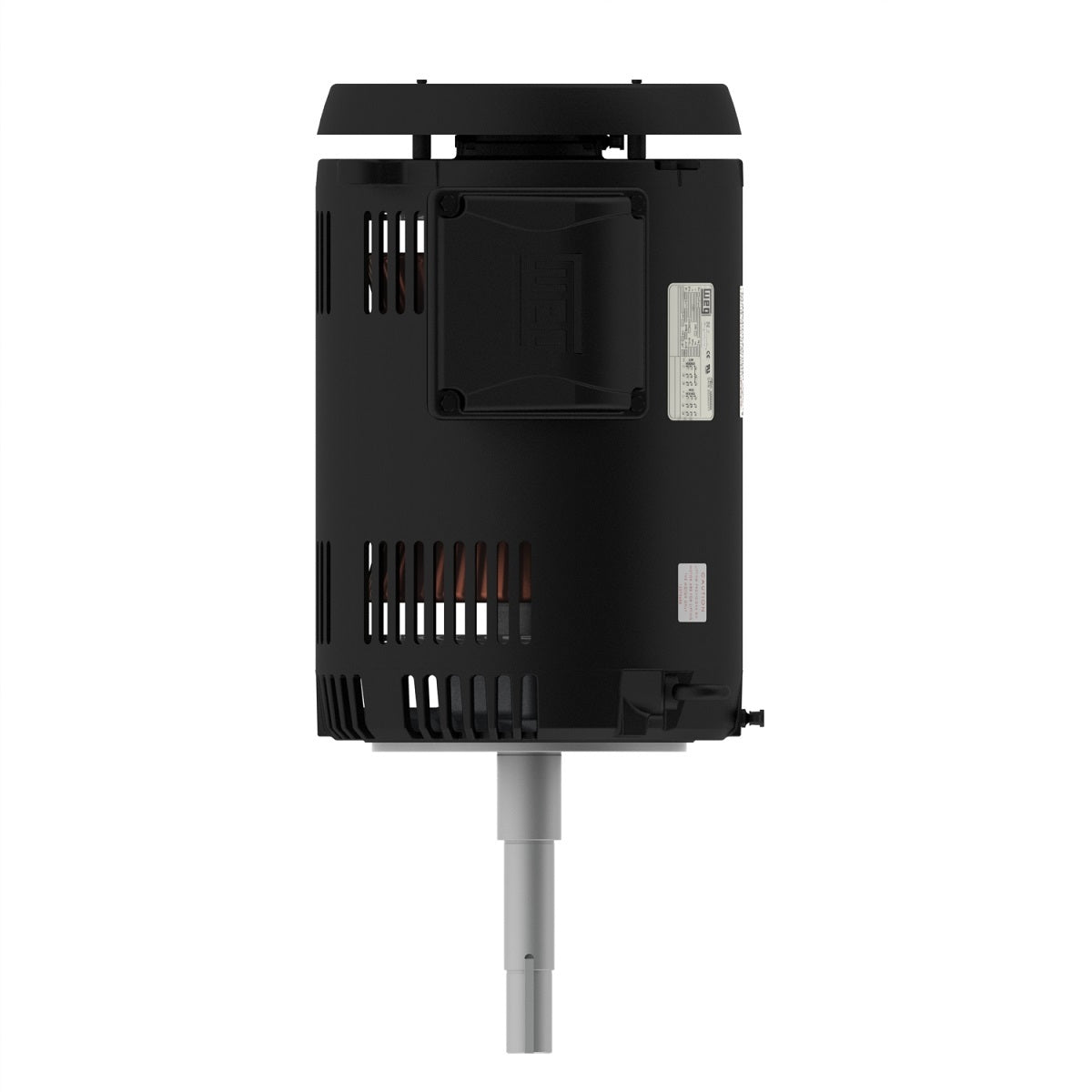

Weg Electric 02536OT3E256JMV-S, 25 Hp, 3600 Rpm, 254/6JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump NEMA Premium Efficiency.

02536OT3E256JMV-S, 25 Hp, 3600 Rpm, 254/6JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump NEMA Premium Efficiency.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6JM
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 58.2/29.1 A
L. R. Amperes 367/183 A
LRC 6.3x(Code G)
No load current 22.8/11.4 A
Rated torque 37.2 ft.lb
Locked rotor torque 180 %
Breakdown torque 290 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.9155 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
