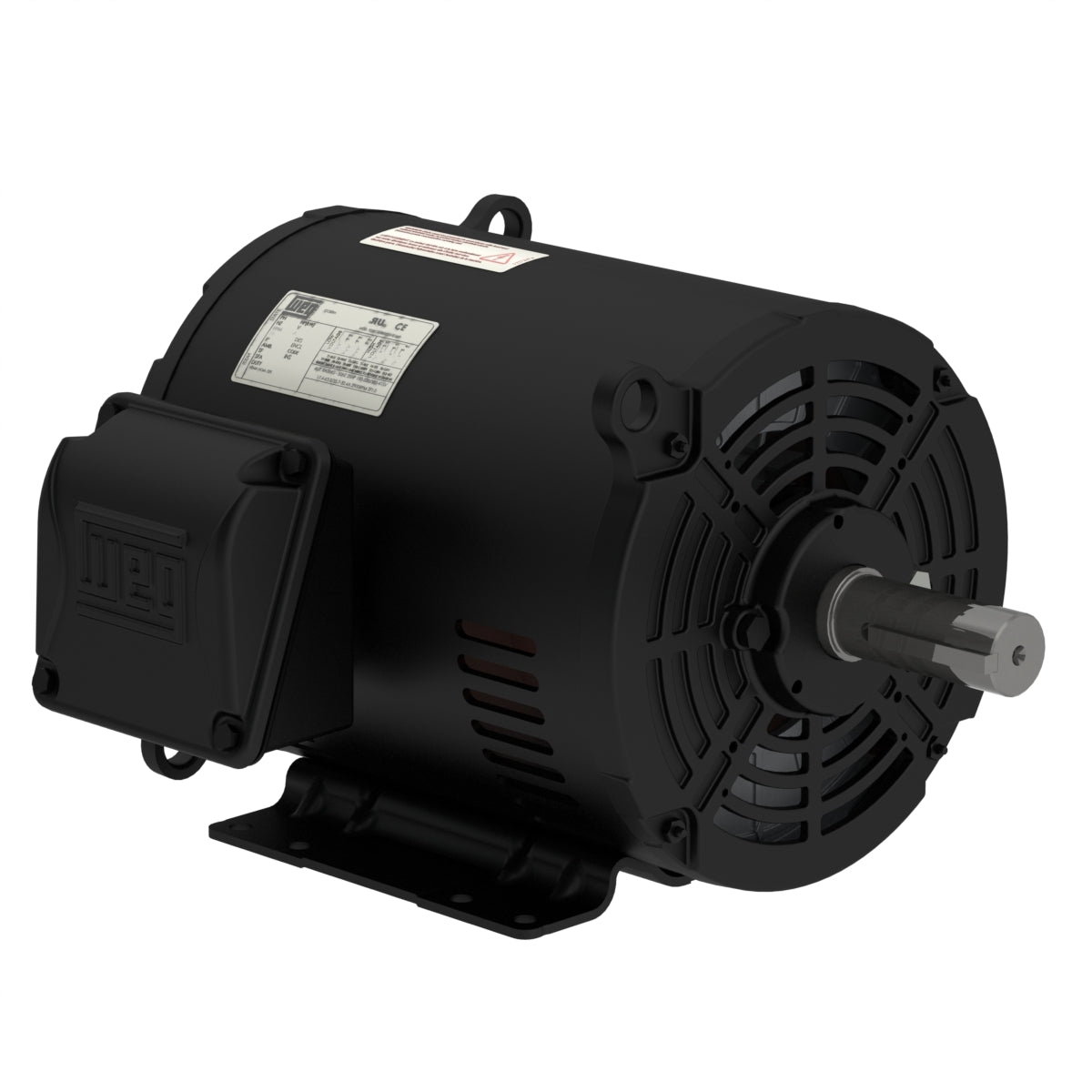

Weg Electric 02536OT3ECD256T, 20 Hp, 3600 Rpm, 254/6T Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

02536OT3ECD256T, 20 Hp, 3600 Rpm, 254/6T Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 58.2/29.1 A
L. R. Amperes 367/183 A
LRC 6.3x(Code G)
No load current 22.8/11.4 A
Rated torque 37.2 ft.lb
Locked rotor torque 180 %
Breakdown torque 290 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.9155 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
