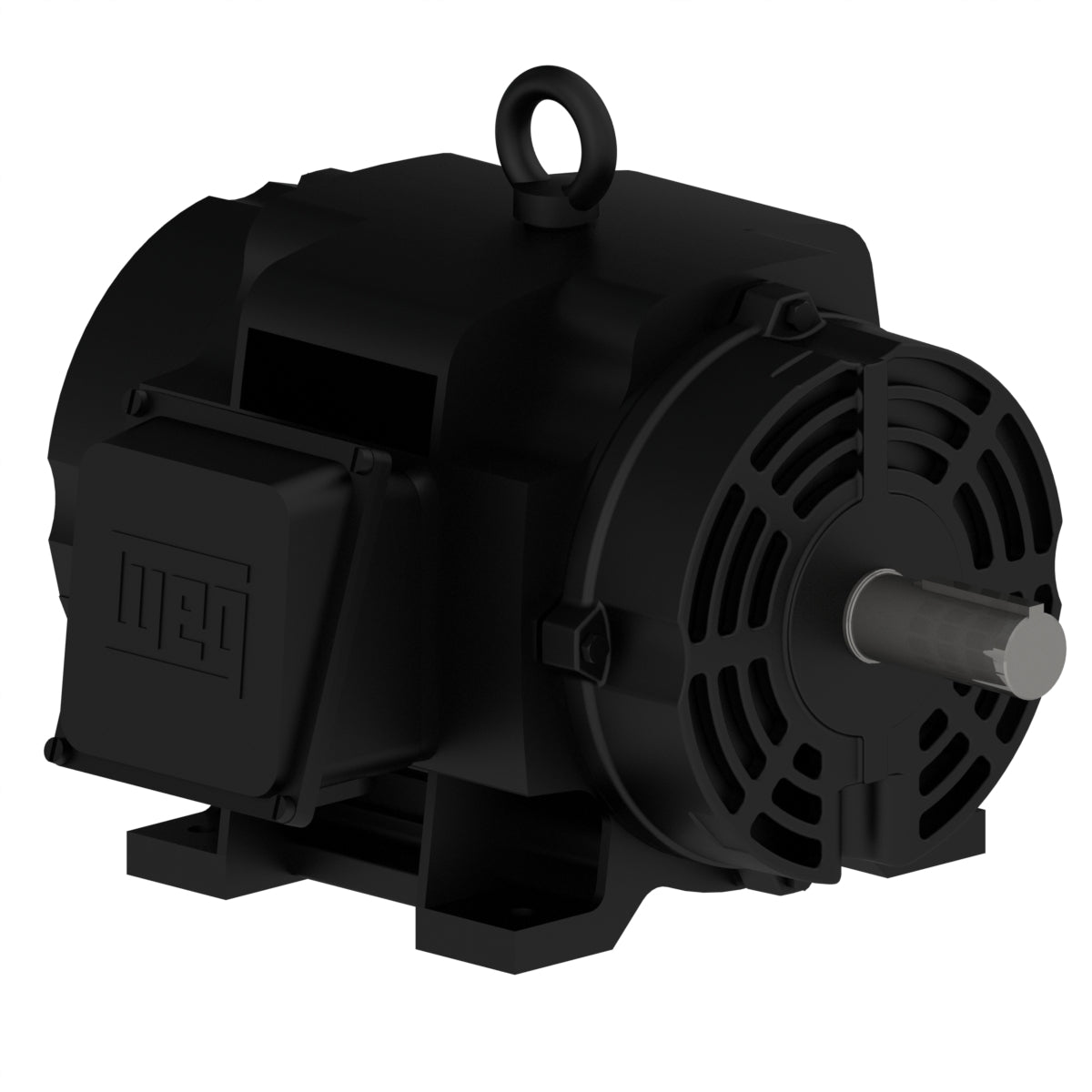

Weg Electric 02536OT3ECD256TF2, 20 Hp, 3600 Rpm, 2546T Frame, 230/460 Vac, ODP, 3 PH, Foot-mounted, ODP NEMA Premium Efficiency.

02536OT3ECD256TF2, 20 Hp, 3600 Rpm, 2546T Frame, 230/460 Vac, ODP, 3 PH, Foot-mounted, ODP NEMA Premium Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC01 - ODP

Frame 256T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 59.6/29.8 A
L. R. Amperes 387/194 A
LRC 6.5x(Code G)
No load current 22.0/11.0 A
Rated torque 37.2 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 1.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
