Weg Electric 02536OT3H256TF2-W40, 25 Hp, 3600 Rpm, 254/6T Frame, 575 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

02536OT3H256TF2-W40, 25 Hp, 3600 Rpm, 254/6T Frame, 575 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

Engineering Data

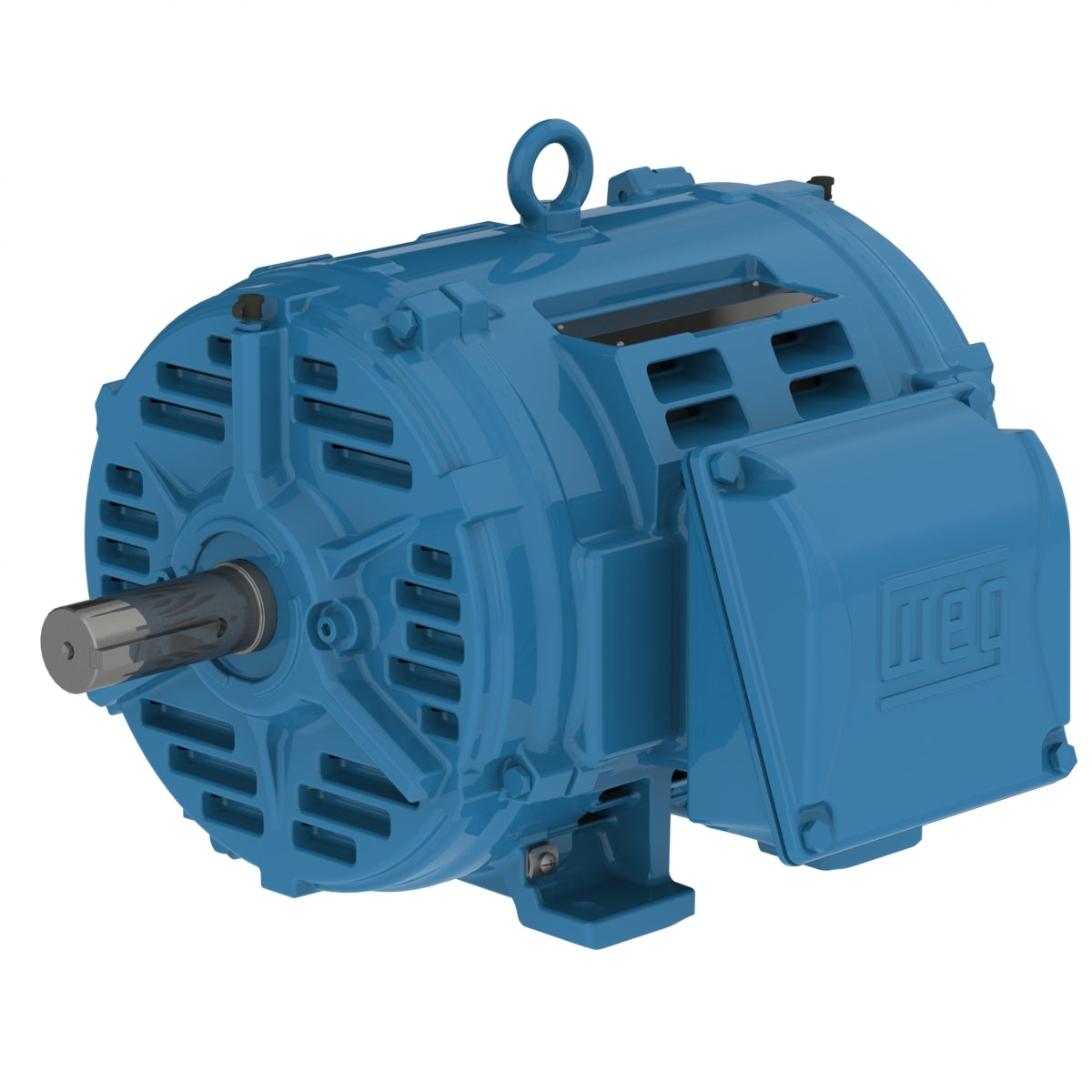

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC01 - ODP

Frame 254/6T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 575 V
Rated current 23.0 A
L. R. Amperes 150 A
LRC 6.5x(Code G)
No load current 6.80 A
Rated torque 37.1 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 1.13 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
