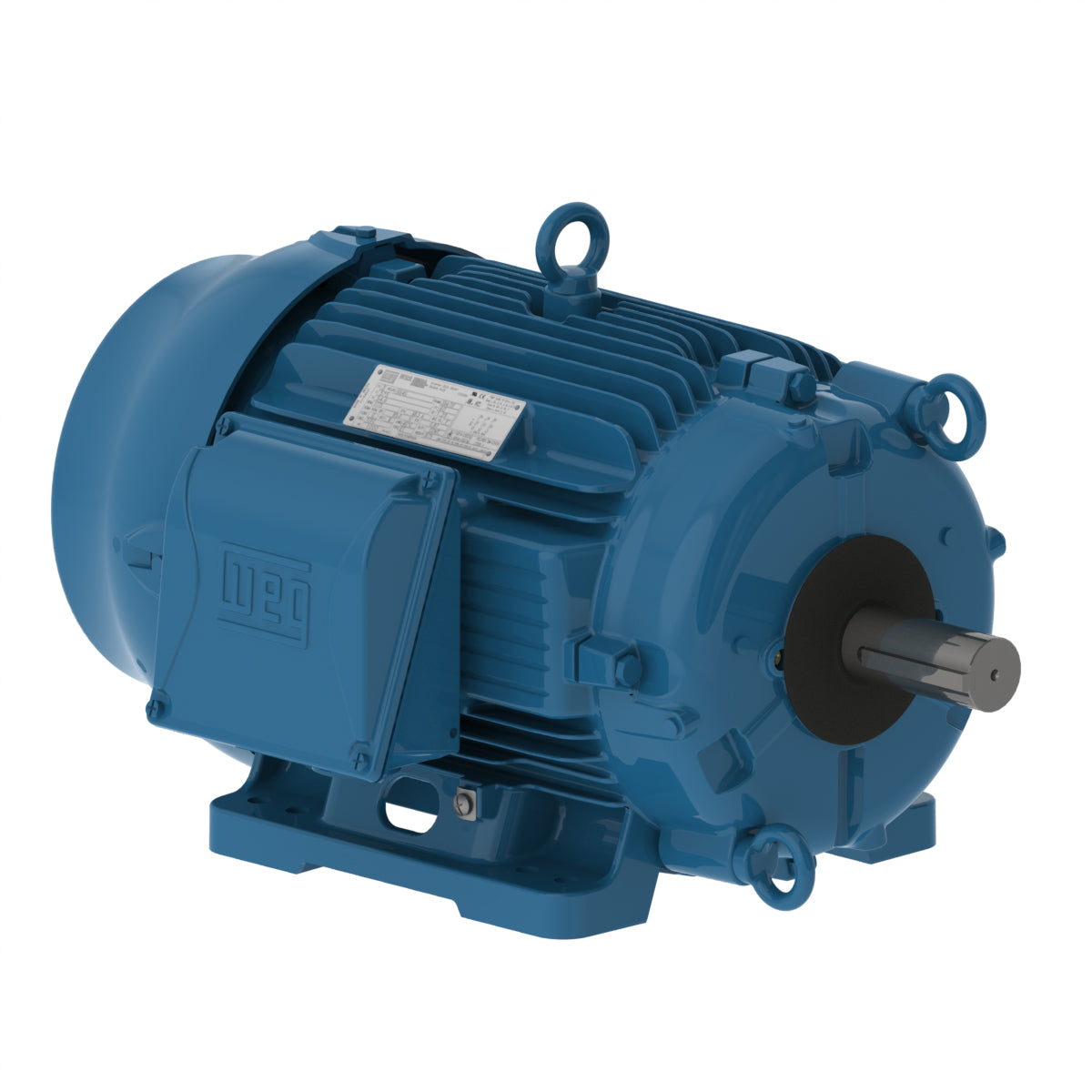

Weg Electric 02589EP3PCT324V2F1-W, 25 Hp, 900/1800 Rpm, 324T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

02589EP3PCT324V2F1-W, 25 Hp, 900/1800 Rpm, 324T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 6.25/25 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 324T
Output 25 HP (18.5 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 200 V
Rated current 71.1 A
L. R. Amperes 469 A
LRC 6.6x(Code H)
No load current 29.9 A
Rated torque 73.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
