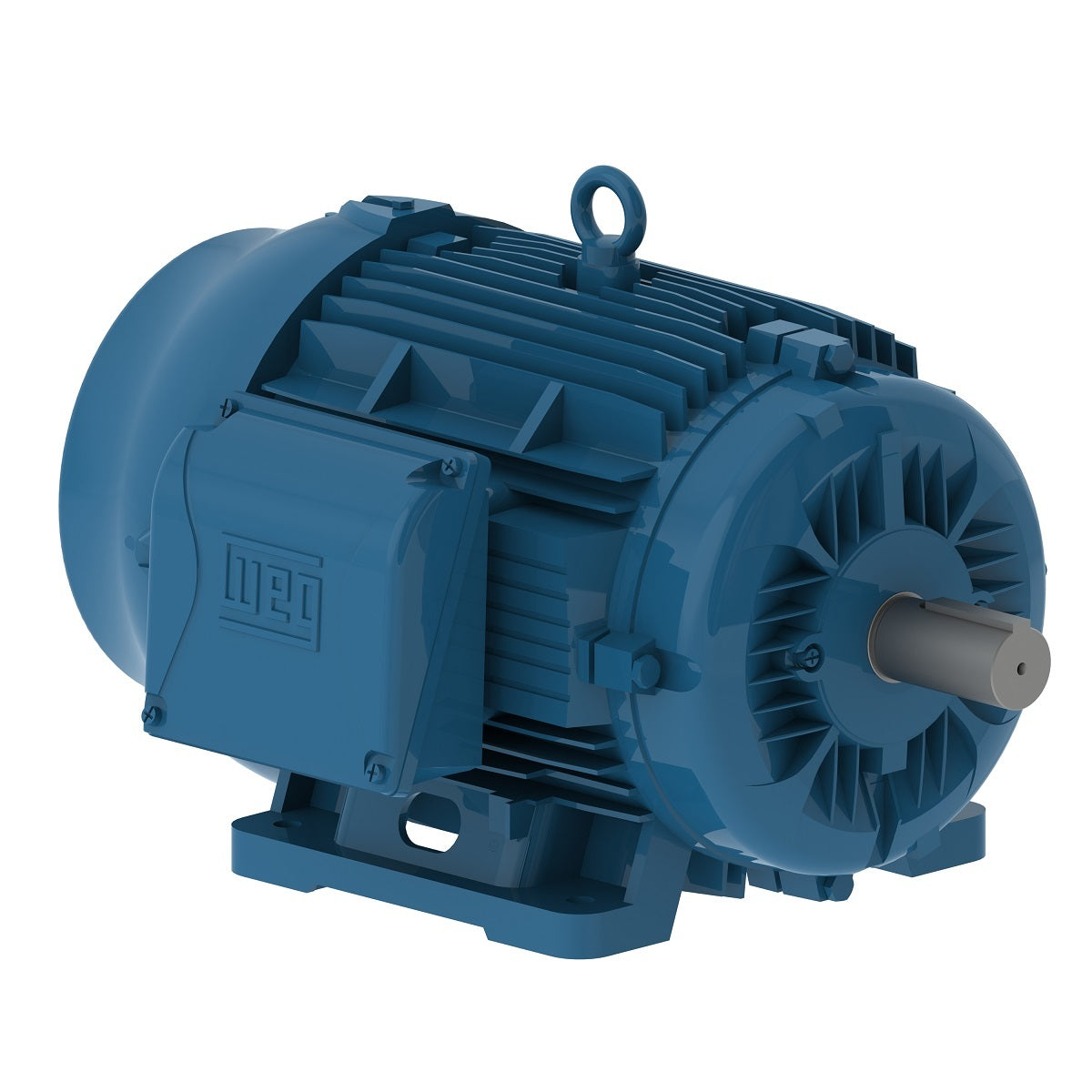

Weg Electric 03012ET3H326T-W22G, 30 Hp, 1200 Rpm, 324/6T Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

03012ET3H326T-W22G, 30 Hp, 1200 Rpm, 324/6T Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

Available with Internal Shaft Grounding Ring – AEGIS

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 30 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 324/6T
Output 30 HP (22 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 575 V
Rated current 29.0 A
L. R. Amperes 180 A
LRC 6.2x(Code G)
No load current 11.6 A
Rated torque 134 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 13.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
