Industrial Motors

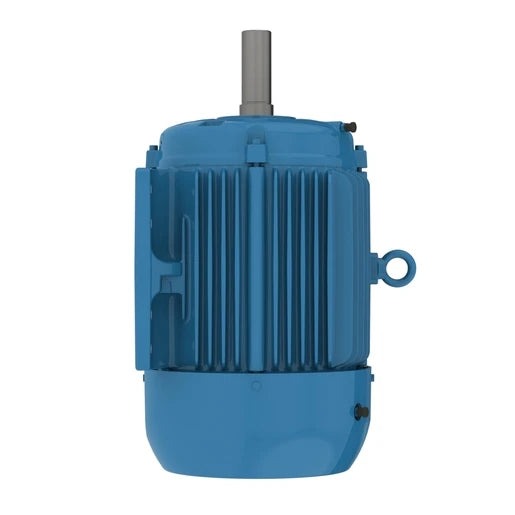

Weg Electric 03012ST3QAP326T-W22, 30 Hp, 1200 Rpm, 324/6T Frame, 460 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 17606734

Weg Electric 03012ST3QAP326T-W22, 30 Hp, 1200 Rpm, 324/6T Frame, 460 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 17606734

$5,106.82
$5,106.82
Sale Sold out
Shipping calculated at checkout.

Weg Electric 03012ST3QAP326T-W22, 30 Hp, 1200 Rpm, 324/6T Frame, 460 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 17606734

SPECIFICATIONS

Manufacturer Part Number 03012ST3QAP326T-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 30HP 6P 324/6T WFF2
Type General Purpose
Horsepower 30 hp
Kilowatts 22.4 kW
Speed 1,200 RPM
Number of Poles 6
Phase 3
Frequency 60 Hz
NEMA Frame 324/6T
AC Voltage 460 VAC
Nominal Voltage 480 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 36.2 A
Service Factor 1.15
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Bearing Type Ball
Shaft Diameter 2.13 "
Overload Protection None
Length 31.1 "
Approvals cCSAus, cULus
Net Weight 2.222 lbs
Gross Weight 2.222 lbs
