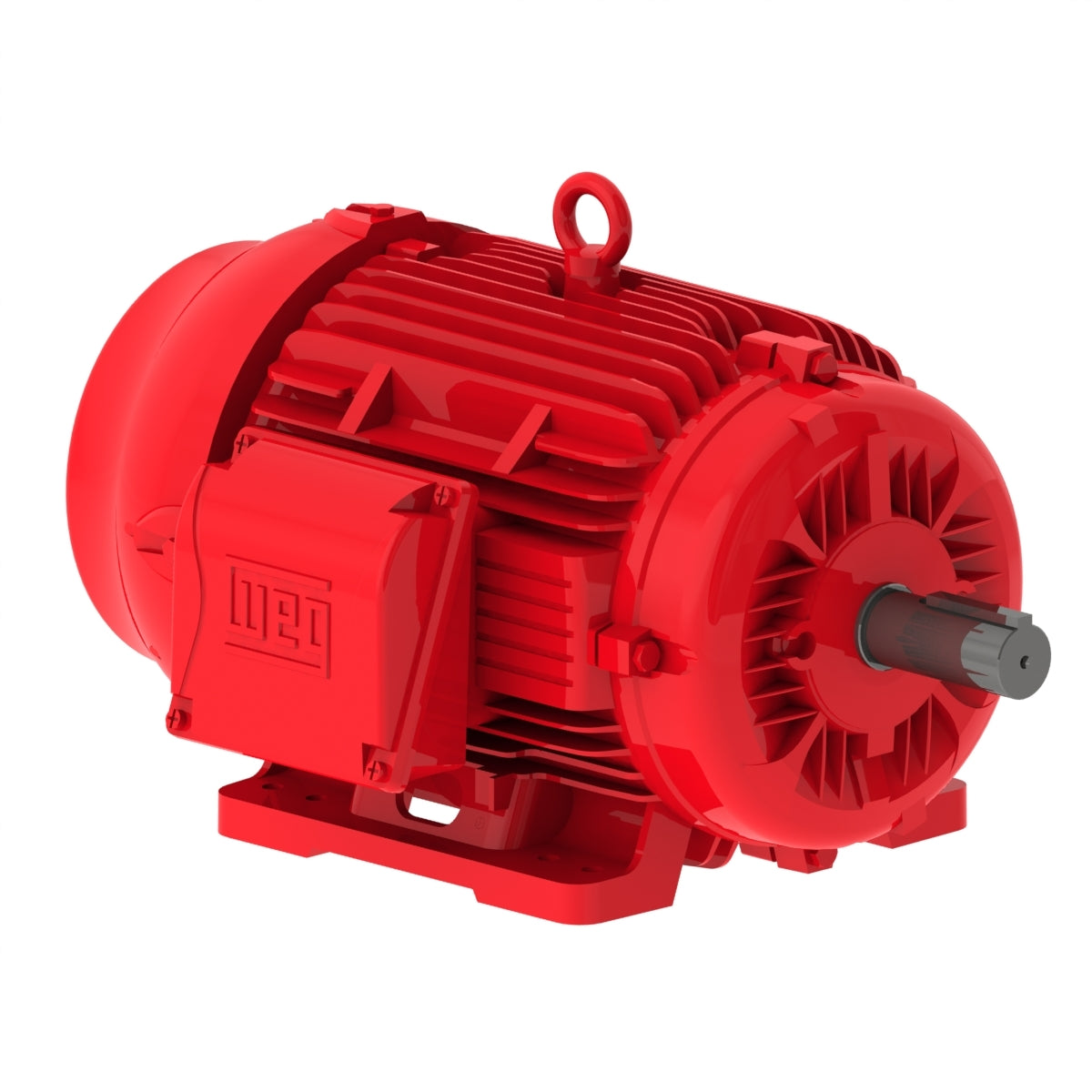

Weg Electric 03015EP3OFP286TS-W22, 30 Hp, 284/6TS Frame, 1500 RPM, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

03015EP3OFP286TS-W22, 30 Hp, 284/6TS Frame, 1500 RPM, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 50 Hz
Voltage 380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1500 rpm
Output rating 30 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 284/6TS
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 41.6 A
L. R. Amperes 233 A
LRC 5.6x(Code F)
No load current 14.0 A
Rated torque 108 ft.lb
Locked rotor torque 210 %
Breakdown torque 215 %
Locked rotor time 27s (cold) 15s (hot)
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
