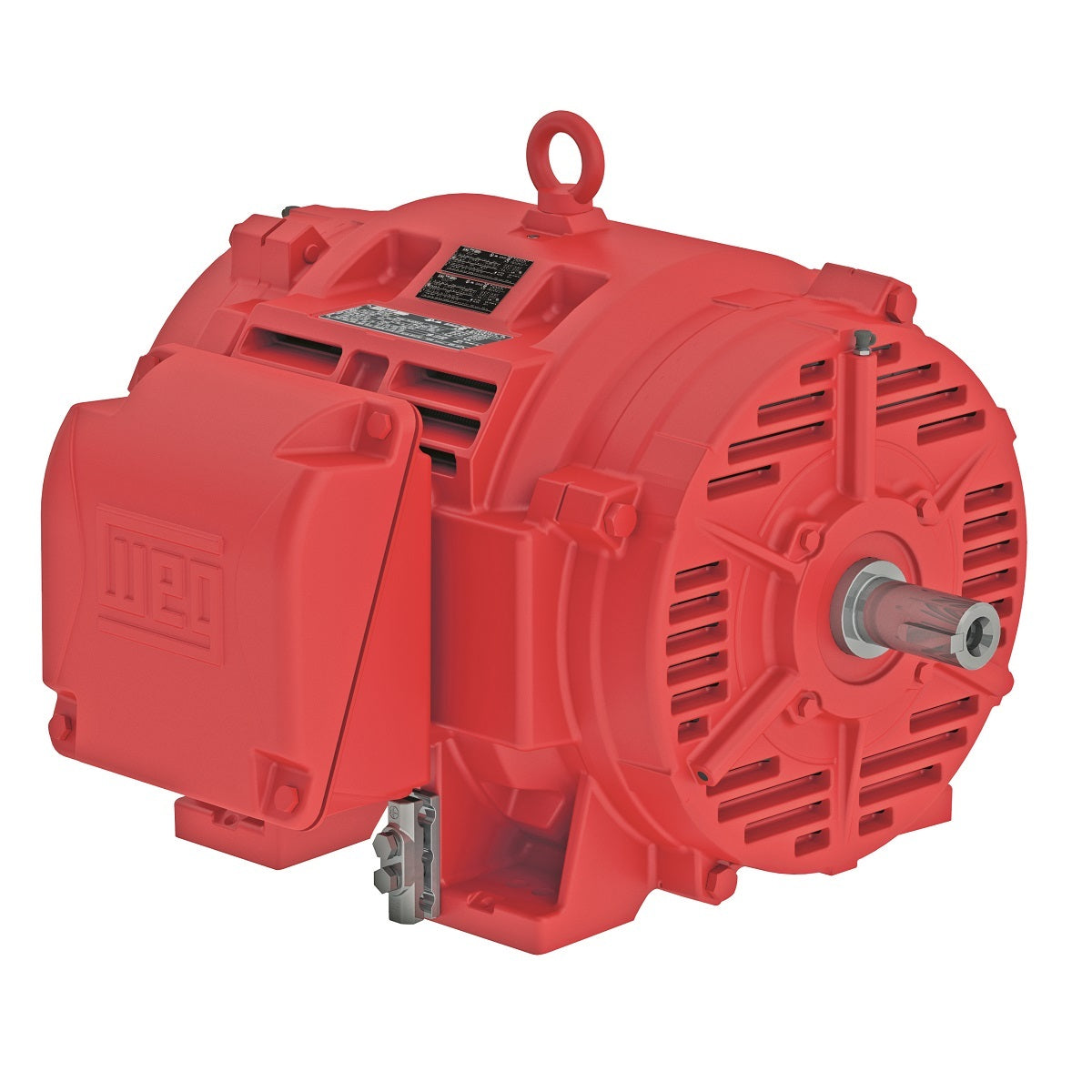

Weg Electric 03018OP3EFP286TS-W40, 30 Hp, 1800 Rpm, 284/6TS Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

03018OP3EFP286TS-W40, 30 Hp, 1800 Rpm, 284/6TS Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 30 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 284/6TS
Output 30 HP (22 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 71.2/35.6 A
L. R. Amperes 420/210 A
LRC 5.9x(Code F)
No load current 22.0/11.0 A
Rated torque 89.3 ft.lb
Locked rotor torque 250 %
Breakdown torque 250 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 3.70 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
