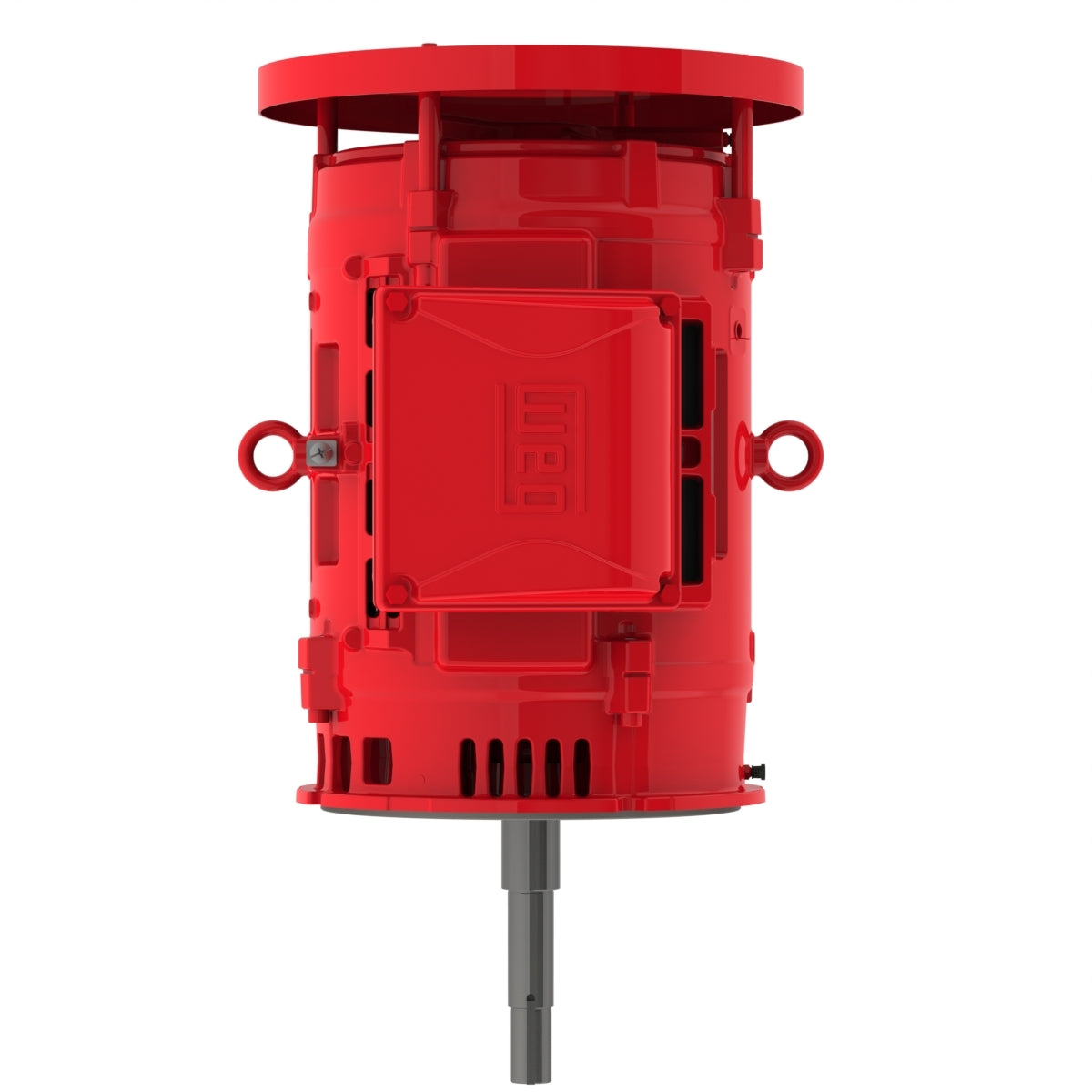

Weg Electric 03018OP3VFP286JPV-W4, 30 Hp, 1800 Rpm, 284/6JP Frame, 200/400 Vac, ODP, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

03018OP3VFP286JPV-W4, 30 Hp, 1800 Rpm, 284/6JP Frame, 200/400 Vac, ODP, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 30 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 284/6JP
Output 30 HP (22 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 200/400 V
Rated current 81.9/40.9 A
L. R. Amperes 483/242 A
LRC 5.9x(Code F)
No load current 25.3/12.7 A
Rated torque 89.3 ft.lb
Locked rotor torque 250 %
Breakdown torque 250 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 3.70 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
