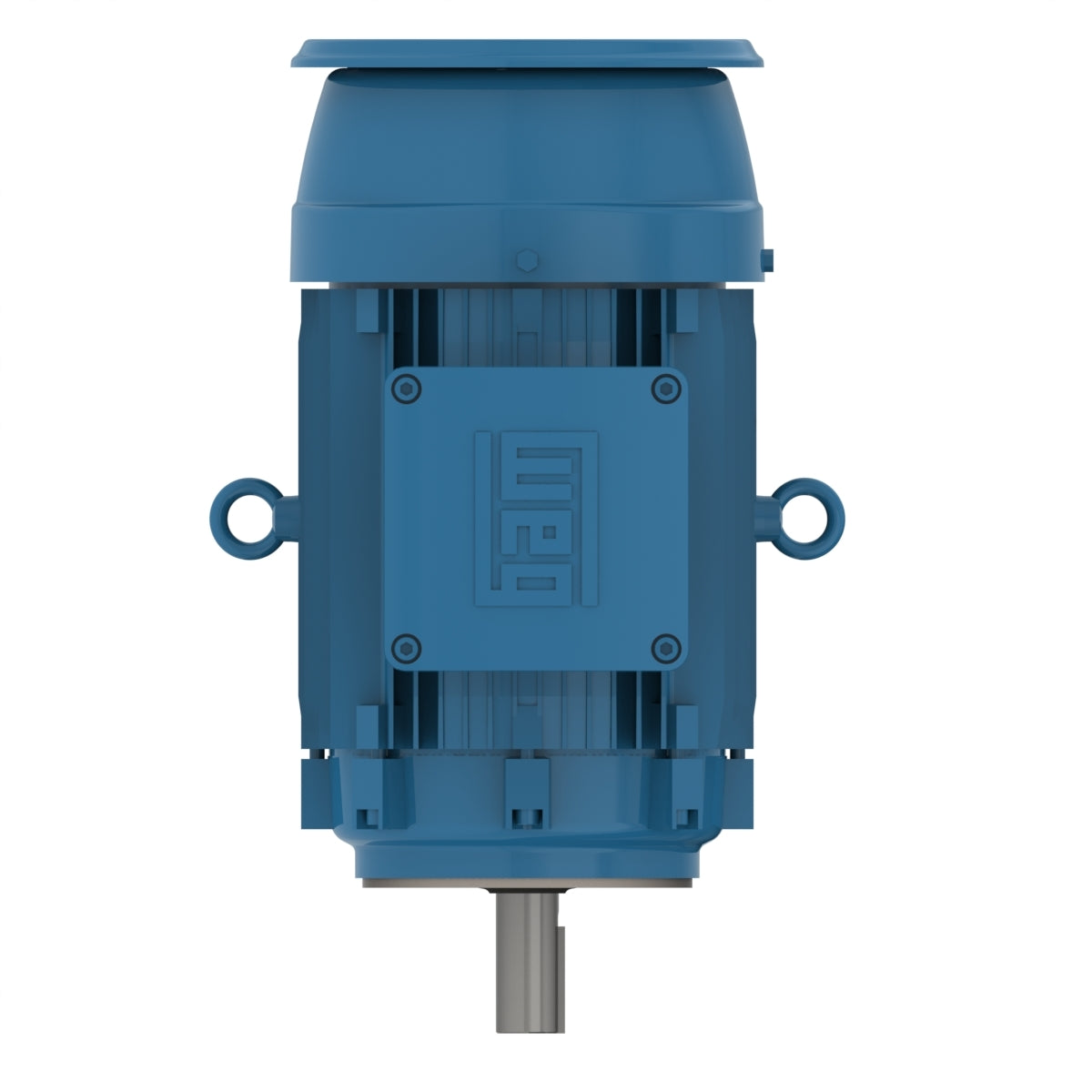

Weg Electric 03018XT3ER286TC, 30 Hp, 1800 Rpm, 286TC Frame, 230/460//380 Vac, TEFC, 3 PH, Footless, W21 Explosion-proof NEMA Premium Efficiency.

03018XT3ER286TC, 30 Hp, 1800 Rpm, 286TC Frame, 230/460//380 Vac, TEFC, 3 PH, Footless, W21 Explosion-proof NEMA Premium Efficiency.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 30 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 286TC
Output 30 HP (22 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 72.0/36.0 A
L. R. Amperes 569/284 A
LRC 7.9x(Code J)
No load current 29.0/14.5 A
Rated torque 89.0 ft.lb
Locked rotor torque 310 %
Breakdown torque 310 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 5.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
